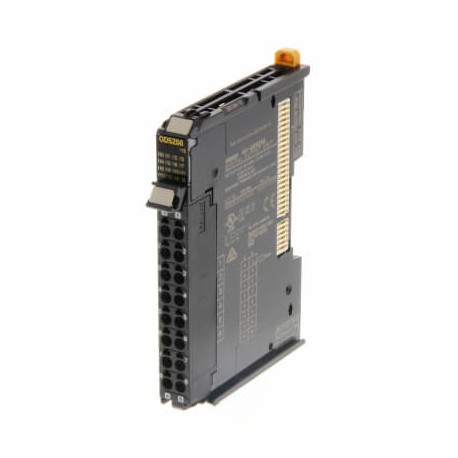

OMRON NX-OD5256 NX-OD5256 NX029104A NXOD5256,1 OMRON 16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Uni.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-OD5256 NX029104A NXOD5256,1 OMRON 16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Uni..

NX-OD5256

NX029104A

NXOD5256.1

OMRON

1 Pcs.

16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for control cabinet integration, the Omron NX-OD5256 digital output unit manages multiple discrete load channels in automated manufacturing machinery. These output blocks bridge PLC logic with external actuators, translating commands into reliable switching operations across complex production systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Spring clamp connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0.5-1.0 msNumber of digital outputs16Digital output typePNPPermitted voltage at output15.0-28.8 VOutput current0.5 AShort-circuit protected outputsConnection method1-wireSignal processingFree running, Standard speed, SynchronousIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals0Number of IOG (V-) terminals0Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)70 g
