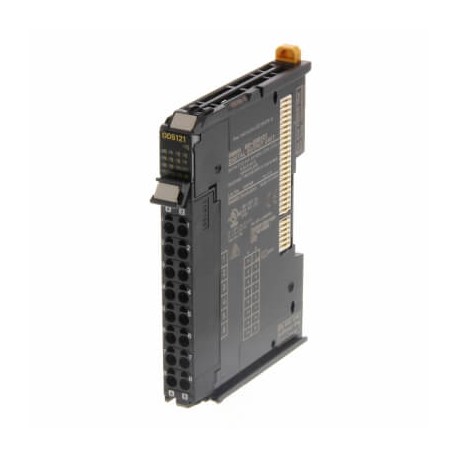

16 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The NX-OD5121 Omron 16 Digital Outputs, Standard speed, NPN 24 VDC, 0.5 A/point, 4 A/NX Uni.. is a digital output module utilized within modular automation setups to switch actuator loads and relay control signals from a PLC. Output modules translate controller instructions into physical actions, driving indicators, valves, and contactors reliably within a control cabinet.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • I/O system: NX I/O Bus
  • Type of module: Digital I/O
  • Number of digital inputs: 0
  • OFF/ON delay: 0.1-0.8 ms
  • Number of digital outputs: 16
  • Digital output type: NPN
  • Permitted voltage at output: 10.2-28.8 V
  • Output current: 0.5 A
  • Connection method: 1-wire
  • Signal processing: Free running, Standard speed, Synchronous
  • I/O connection type: Push-in
  • Number of I/O connectors: 1
  • Number of IOV (V+) terminals: 0
  • Number of IOG (V-) terminals: 0
  • Number of COM terminals: 0
  • Degree of protection (IP): IP20

More info

▲

Specifications

I/O systemNX I/O Bus
Type of moduleDigital I/O
Number of digital inputs0
Digital input typeNone
OFF/ON delay0.1-0.8 ms
Number of digital outputs16
Digital output typeNPN
Permitted voltage at output10.2-28.8 V
Output current0.5 A
Short-circuit protected outputs
Connection method1-wire
Signal processingFree running, Standard speed, Synchronous
IO-Link master
I/O connection typePush-in
Number of I/O connectors1
Detachable I/O connector
Suitable for safety functions
SIL according to IEC 61508None
Communication port(s)None
Number of IOV (V+) terminals0
Number of IOG (V-) terminals0
Number of COM terminals0
Degree of protection (IP)IP20
Product Height (unpacked)104.5 mm
Product Width (unpacked)12 mm
Product Depth (unpacked)80.1 mm
Product Weight (unpacked)87 g

Accessories

NX-AUX02Terminal block coding pins for 10x NX I/O units (terminal block: 30 pins, unit: 30 pins)
NX-PC0010NX I/O power connection unit, IOG, 5-24 V DC input, 16 terminals, screwless push-in connector, 12mm wide
NX-PC0020NX I/O power connection unit, IOV, 5-24 V DC input, 16 terminals, screwless push-in connector, 12mm wide
NX-PC0030NX I/O power connection unit, IOV+IOG, 5-24 V DC input, 8 + 8 terminals, screwless push-in connector, 12mm wide

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
