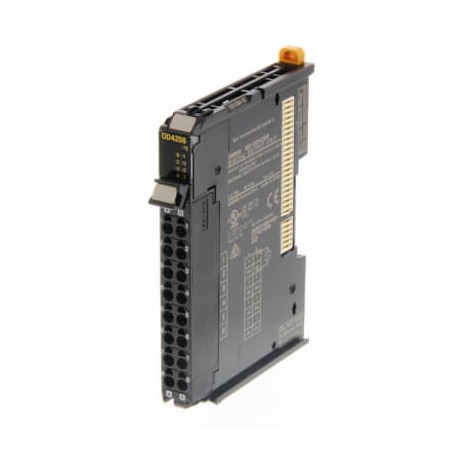

OMRON NX-OD4256 NX-OD4256 NX029102E NXOD4256,1 OMRON 8 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-OD4256 NX029102E NXOD4256,1 OMRON 8 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit..

NX-OD4256

NX029102E

NXOD4256.1

OMRON

1 Pcs.

8 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron NX-OD4256 digital output unit controls industrial actuators and peripheral devices according to high-speed controller instructions. Factory automation setups employ transistor output modules to drive pneumatic solenoids, indicators, and electronic relays with precision. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Spring clamp connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0.5-1.0 msNumber of digital outputs8Digital output typePNPPermitted voltage at output15.0-28.8 VOutput current0.5 AShort-circuit protected outputsConnection method2-wireSignal processingFree running, Standard speed, SynchronousIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals0Number of IOG (V-) terminals8Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)70 g
