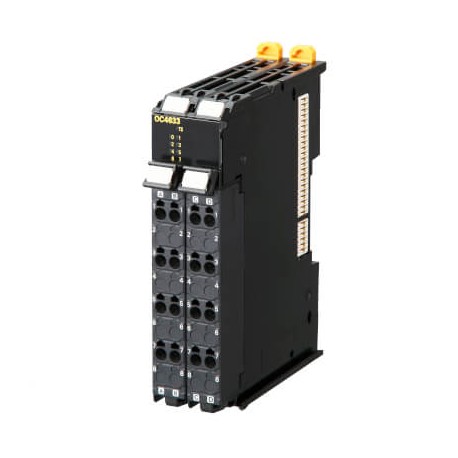

OMRON NX-OC4633 NX-OC4633 NX020124G NXOC4633 OMRON Unit NX 8 Relay Outputs 2A Standard, screwless push-in View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-OC4633 NX020124G NXOC4633 OMRON Unit NX 8 Relay Outputs 2A Standard, screwless push-in

NX-OC4633

NX020124G

NXOC4633

OMRON

1 Pcs.

Unit NX - 8 Relay Outputs 2A Standard, screwless push-in Unit NX- 8 Outputs 2A Relay Standard NO, screwless push-in 8 Digital Outputs, normally-open relays, 2 A, 250 VAC, screwless push-in connector, 24 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A unit NX 8 relay outputs 2A standard, screwless push-in, designated as Omron part number NX-OC4633, functions as a modular output interface in control architectures to switch external loads and actuators safely based on controller instructions. Discrete output units direct electrical power to valves, contactors, and indicators throughout a facility. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): AC/DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay15-15 msNumber of digital outputs8Digital output typeRelay NOPermitted voltage at output24-250 VOutput current2 AShort-circuit protected outputsConnection method2-wireSignal processingFree running, Standard speedIO-Link masterI/O connection typePush-inNumber of I/O connectors2Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals0Number of IOG (V-) terminals0Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)24 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)167 g
