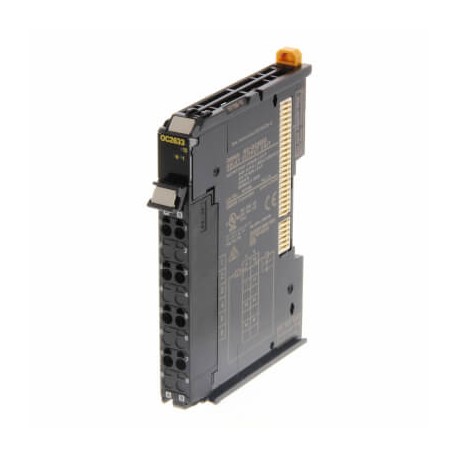

OMRON NX-OC2633 NX-OC2633 NX029099A NXOC2633,1 OMRON 2 Digital Outputs, Normally-open Relays, 2 A, 250 VAC, screwless push-i.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-OC2633 NX029099A NXOC2633,1 OMRON 2 Digital Outputs, Normally-open Relays, 2 A, 250 VAC, screwless push-i..

NX-OC2633

NX029099A

NXOC2633.1

OMRON

1 Pcs.

2 Digital Outputs, Normally-open Relays, 2 A, 250 VAC, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron unit provides reliable relay-based switching output capabilities for industrial control architectures, bridging controller logic with heavy-duty load circuits. Such units are widely deployed to isolate control systems from high-voltage field devices.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): AC/DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of digital output (EF003601): Relay
  • Type of electric connection (EF003961): Spring clamp connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneOFF/ON delay0-15 msNumber of digital outputs2Digital output typeRelay NOPermitted voltage at output0-250 VOutput current2 AShort-circuit protected outputsConnection method2-wireSignal processingFree running, Standard speedIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals0Number of IOG (V-) terminals0Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)65 g
