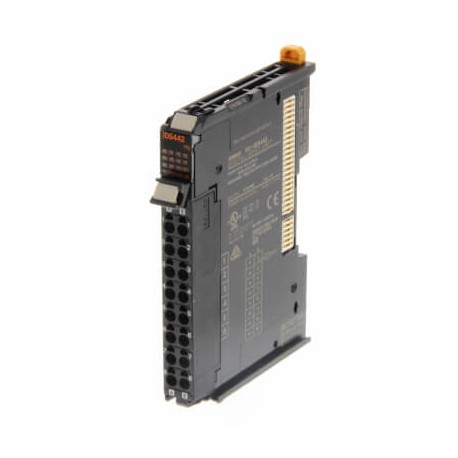

NX-ID5442 NX029098C NXID5442,1 OMRON 16 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connec..
NX-ID5442
NX029098C
NXID5442.1
OMRON
1 Pcs.
Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron NX-ID5442 NX029098C NXID5442,1 OMRON 16 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connec.. is a DIN rail-mounted input device used within modular automation architectures to gather binary process signals. Digital input units link field-level switches and sensors directly to the control bus for real-time machine automation.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- I/O system: NX I/O Bus
- Type of module: Digital I/O
- Number of digital inputs: 16
- Digital input type: PNP
- Permitted voltage at input: 15-28.8 V
- OFF/ON delay: 0.02-0.4 ms
- Number of digital outputs: 0
- Output current: 0 A
- Connection method: 1-wire
- Signal processing: Free running, Standard speed, Synchronous
- I/O connection type: Push-in
- Number of I/O connectors: 1
- Number of IOV (V+) terminals: 0
- Number of IOG (V-) terminals: 0
- Number of COM terminals: 0
- Degree of protection (IP): IP20
More info
▲Specifications
| I/O system | NX I/O Bus |
| Type of module | Digital I/O |
| Number of digital inputs | 16 |
| Digital input type | PNP |
| Permitted voltage at input | 15-28.8 V |
| OFF/ON delay | 0.02-0.4 ms |
| Number of digital outputs | 0 |
| Digital output type | None |
| Output current | 0 A |
| Short-circuit protected outputs | |
| Connection method | 1-wire |
| Signal processing | Free running, Standard speed, Synchronous |
| IO-Link master | |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | None |
| Communication port(s) | None |
| Number of IOV (V+) terminals | 0 |
| Number of IOG (V-) terminals | 0 |
| Number of COM terminals | 0 |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 104.5 mm |
| Product Width (unpacked) | 12 mm |
| Product Depth (unpacked) | 80.1 mm |
| Product Weight (unpacked) | 65 g |
Accessories
| NX-AUX02 | Terminal block coding pins for 10x NX I/O units (terminal block: 30 pins, unit: 30 pins) | ||
| NX-PC0010 | NX I/O power connection unit, IOG, 5-24 V DC input, 16 terminals, screwless push-in connector, 12mm wide | ||
| NX-PC0020 | NX I/O power connection unit, IOV, 5-24 V DC input, 16 terminals, screwless push-in connector, 12mm wide | ||
| NX-PC0030 | NX I/O power connection unit, IOV+IOG, 5-24 V DC input, 8 + 8 terminals, screwless push-in connector, 12mm wide |
