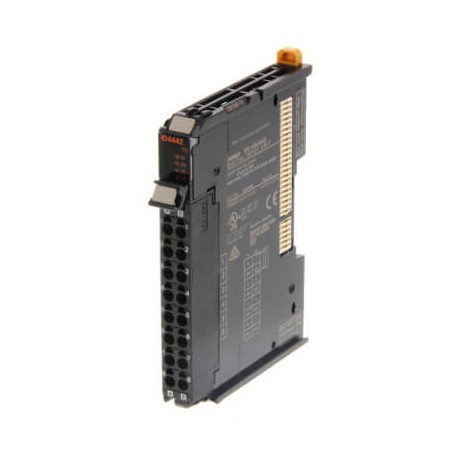

OMRON NX-ID4442 NX-ID4442 NX029096G NXID4442,1 OMRON 8 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connect.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-ID4442 NX029096G NXID4442,1 OMRON 8 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connect..

NX-ID4442

NX029096G

NXID4442.1

OMRON

1 Pcs.

8 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a high-density signal interface, this Omron digital input unit captures binary field states and relays them to the central automation controller. It is deployed in control cabinets to monitor discrete sensors like limit switches and proximity detectors.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs8Digital input typePNPPermitted voltage at input15-28.8 VOFF/ON delay0.02-0.4 msNumber of digital outputs0Digital output typeNoneOutput current0 AShort-circuit protected outputsConnection method2-wireSignal processingFree running, Standard speed, SynchronousIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals8Number of IOG (V-) terminals0Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)65 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
