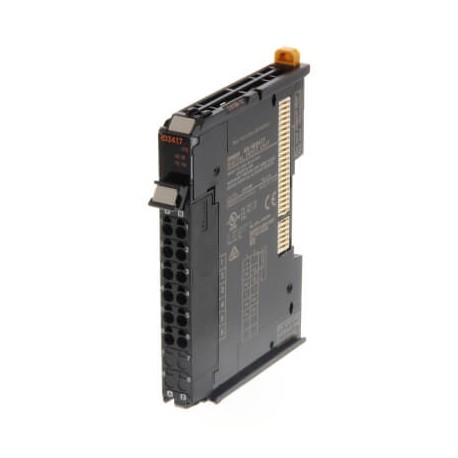

OMRON NX-ID3417 NX-ID3417 NX029094M NXID3417,1 OMRON 4 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connect.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-ID3417 NX029094M NXID3417,1 OMRON 4 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connect..

NX-ID3417

NX029094M

NXID3417.1

OMRON

1 Pcs.

4 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - digital I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron NX-ID3417 digital input module provides standard-speed signal collection for programmable logic controller platforms using streamlined push-in connections. Modular input cards are essential components in industrial control cabinets for routing machine sensor data into processing units. Commercial terms, inventory, and lead times are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: NX-ID3417
  • Catalogue code: NX029094M
  • Catalogue title: NX-ID3417 NX029094M NXID3417,1 OMRON 4 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connect..
  • Product description: I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs4Digital input typePNPPermitted voltage at input9-28.8 VOFF/ON delay0.02-0.4 msNumber of digital outputs0Digital output typeNoneOutput current0 AShort-
  • Manufacturer summary: 4 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide

More info

▲
I/O systemNX I/O BusType of moduleDigital I/ONumber of digital inputs4Digital input typePNPPermitted voltage at input9-28.8 VOFF/ON delay0.02-0.4 msNumber of digital outputs0Digital output typeNoneOutput current0 AShort-circuit protected outputsConnection method2-wire, 3-wireSignal processingFree running, Standard speed, SynchronousIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneCommunication port(s)NoneNumber of IOV (V+) terminals4Number of IOG (V-) terminals4Number of COM terminals0Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)65 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
