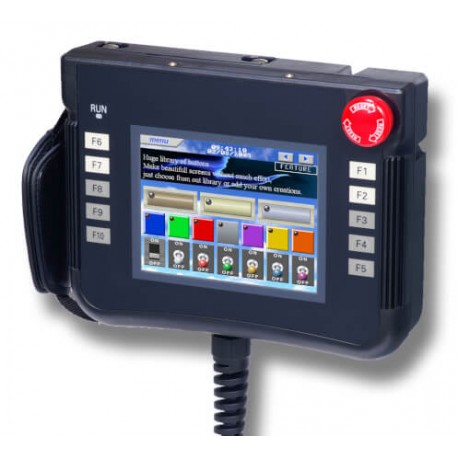

NSH5-232UL-3M NS050707H NSH5232UL3M OMRON RS232 Cable 3M for Terminal hand-held NSH5
NSH5-232UL-3M
NS050707H
NSH5232UL3M
OMRON
1 Pcs.
Automation > Telecommunications patch cord
HMI Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron NSH5-232UL-3M is an RS232 handheld terminal cable designed for connecting operator interfaces and control terminals in machine automation systems. Specialized communication cables like this ensure stable data exchange and programming capabilities between human-machine interfaces and industrial controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- NSH5: TFT, 5.7", 320×240 pixels
- Bracket NS handheld for wall mounting: NSH5-ATT02
- Cable NS handheld, RS-422, 10m UL: NSH5-422UL-10M
- Cable NS handheld, RS-232, 10m UL: NSH5-232UL-10M
- Cable NS handheld, RS-232, 3m UL: NSH5-232UL-3M
- Memory card interface: 1 slot ATA Compact Flash card
- Serial (COM1): 1×RS-232/RS-422A
- USB Slave: For programming
- Line voltage: 24 VDC ±15%
- Power consumption: 10 W max.
- Battery: CJ1W-BAT01
- Battery lifetime: 5 years (at 25°C)
- Enclosure rating: IP65 1
- Obtained standards: UL 1604 Class 1 Diff. 2, cUL, CE, NEMA equivalent
- Operating environment: No corrosive gases
- Noise immunity: Conforming to IEC 61000-4-4: 2 kV (power supply line)
More info
▲- Re-use projects of non-mobile NS products
- 10 Function keys, 4 hardwired for inching
- Emergency switch on front plus enable switch on back of unit
- Well protected against water, IP65
- Compact Flash, Serial and USB interface
Specifications & ordering info
Ordering information
Accessories
Bracket NS handheld protecting emergency button from accidental activation | |||
Specifications
IP651 | |
10 to 57 Hz with amplitude of 0.075 mm, 57 to 150 Hz with acceleration of 9.8 m/s2 three minutes each in X, Y, and Z directions | |
Drop test1 |
