NSH5-232CN-10M NS050711F NSH5232CN10M OMRON NSH5 Cable to connecting box 10 m
NSH5-232CN-10M
NS050711F
NSH5232CN10M
OMRON
1 Pcs.
Automation > Telecommunications patch cord
HMI Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

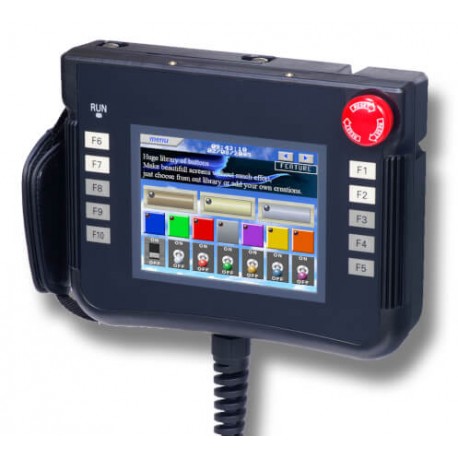

The Omron NSH5-232CN-10M NSH5 Cable links handheld operator terminals to connection boxes, facilitating mobile machine monitoring and control. Handheld terminal cables provide operators with flexible access points around complex industrial machinery.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- NSH5: TFT, 5.7", 320×240 pixels
- Bracket NS handheld for wall mounting: NSH5-ATT02
- Cable NS handheld, RS-422, 10m UL: NSH5-422UL-10M
- Cable NS handheld, RS-232, 10m UL: NSH5-232UL-10M
- Cable NS handheld, RS-232, 3m UL: NSH5-232UL-3M
- Memory card interface: 1 slot ATA Compact Flash card
- Serial (COM1): 1×RS-232/RS-422A
- USB Slave: For programming
- Line voltage: 24 VDC ±15%
- Power consumption: 10 W max.
- Battery: CJ1W-BAT01
- Battery lifetime: 5 years (at 25°C)
- Enclosure rating: IP65 1
- Obtained standards: UL 1604 Class 1 Diff. 2, cUL, CE, NEMA equivalent
- Operating environment: No corrosive gases
- Noise immunity: Conforming to IEC 61000-4-4: 2 kV (power supply line)
More info
▲- Re-use projects of non-mobile NS products
- 10 Function keys, 4 hardwired for inching
- Emergency switch on front plus enable switch on back of unit
- Well protected against water, IP65
- Compact Flash, Serial and USB interface
Specifications & ordering info
Ordering information
Accessories
Bracket NS handheld protecting emergency button from accidental activation | |||
Specifications
IP651 | |
10 to 57 Hz with amplitude of 0.075 mm, 57 to 150 Hz with acceleration of 9.8 m/s2 three minutes each in X, Y, and Z directions | |
Drop test1 |
