OMRON D4A-C00 D4A-C00 D4A 5200F D4AC00 OMRON Actuator D4A-N Lever with roller adjustable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4A-C00 D4A 5200F D4AC00 OMRON Actuator D4A-N Lever with roller adjustable

D4A-C00

D4A 5200F

D4AC00

OMRON

1 Pcs.

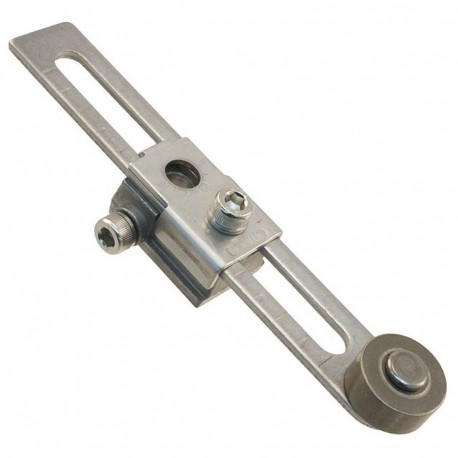

Actuator D4A-N Lever with roller adjustable Replacement lever, adjustable roller lever type

Automation > Accessories/spare parts for position switches
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as an Omron D4A-C00 actuator D4A-N lever with roller adjustable, this mechanical component provides precise physical contact sensing for industrial machinery and automated production lines. Industrial engineers use these sensing arms to detect position limits, component presence, or moving parts within complex mechanical setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 2.Switch Box 1: SPDT, double-break; without indicator 3: SPDT, double-break; neon lamp A: SPDT, double-break; LED (12 VDC) C: SPDT, double-break, LED (24 VDC; LED (48 VDC) 5: DPDT, double-break, simultaneous operation; without indi- cator 7: DPDT, double-break, sequential operation; neon lamp M: DPDT,double-break,sequentialoperation; LED Q: DPDT, double-break, sequential operation; standard 02: Roller lever; high-sensitivity 03: Roller lever; low torque 04: Roller lever, high-sensitivity
  • double-break: 2: 1/2-14 NPT conduit (DPDT; double-break) 3: G 1/2 conduit (SPDT; double-break) 4: G 1/2 conduit (DPDT; double-break) 5: M20 x 1.5 conduit (SPDT; double-break) 6: M20 x 1.5 conduit (DPDT; double-break)

More info

▲

General-purpose Limit Switch
D4A-@N
The Limit Switch with Better Seal, Shock
Resistance, and Strength
• A double seal on the head, a complete gasket cover, and other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12,
13).
• Block mounting method to reduce weight to 290 g.
• Block mounting method also reduces downtime for mainte- nance.
• Wide standard operating temperature range:
–40°C to 100°C (standard type).
• Models with fluoro-rubber available for greater resistance to chemicals.
• DPDT, double-break models available for complex operations.
Model Number Structure
■ Model Number Legend
D4A-@@@@N
12 3
1.Receptacle Box
1: 1/2-14 NPT conduit (SPDT, double-break)
2: 1/2-14 NPT conduit (DPDT, double-break)
3: G 1/2 conduit (SPDT, double-break)
4: G 1/2 conduit (DPDT, double-break)
5: M20 x 1.5 conduit (SPDT, double-break)
6: M20 x 1.5 conduit (DPDT, double-break)
2.Switch Box
1: SPDT, double-break, without indicator
3: SPDT, double-break, neon lamp
A:SPDT, double-break, LED (12 VDC) C:SPDT, double-break, LED
(24 VDC, leakage current: 4 mA)
E:SPDT, double-break, LED
(24 VDC, leakage current: 1.3 mA)
G:SPDT, double-break, LED (48 VDC)
5: DPDT, double-break, simultaneous operation, without indi- cator
7: DPDT, double-break, sequential operation, without indicator
(See note 1.)
9: DPDT, double-break, center neutral operation, without indi- cator (See note 2.)
L: DPDT, double-break, simultaneous operation, neon lamp
M:DPDT,double-break,sequentialoperation,neonlamp
(See note 1.)
N:DPDT, double-break, center neutral operation, neon lamp
(See note 2.)
P:DPDT, double-break, simultaneous operation, LED Q:DPDT, double-break, sequential operation, LED
(See note 1.)
R:DPDT, double-break, center neutral operation, LED (See note 2.)
3.Head
01: Roller lever, standard
02: Roller lever, high-sensitivity
03: Roller lever, low torque
04: Roller lever, high-sensitivity, low torque
05: Roller lever, maintained
17: Roller lever, sequential operation
18: Roller lever, center neutral operation
06: Side plunger, standard
07-V: Side plunger, vertical roller
07-H: Side plunger, horizontal roller
08: Side plunger, adjustable
09: Top plunger, standard
10: Top plunger, roller
11: Top plunger, adjustable
12: Flexible rod, spring wire
14: Flexible rod, plastic rod
15: Flexible rod, cat whisker
16: Flexible rod, coil spring
Note: 1.Use the D4A-0017N Special Head.
2.Use the D4A-0018N Special Head.
3.Fluoro-rubber sealed type is also available.
General-purpose Limit Switch D4A-@N F-9


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
