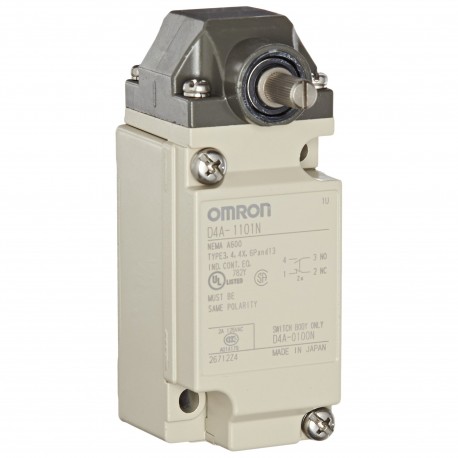

D4A-1101N D4AN1101R D4A1101N OMRON Roller standard DPDT Break-dual 1/2-14 NPT
D4A-1101N
D4AN1101R
D4A1101N
OMRON
1 Pcs.
Automation > End switch
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron D4A-1101N roller standard position switch is utilized across manufacturing lines to monitor physical movement, verify component placement, and regulate operational limits. Engineers integrate limit switches into automated frameworks to ensure safe travel thresholds and accurate mechanical sequencing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Cuboid
- Degree of protection (IP) (EF005474): IP67
- Type of control element (EF006976): Roller lever
- Switching function (EF000189): Quick-break switch
- Housing material (EF001596): Metal
- With status indication (EF001602): No
- Suitable for safety functions (EF001597): Yes
- Forced opening (EF006694): No
- Output electronic (EF006987): No
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 1
- Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
- Number of safety auxiliary contacts (EF006940): 0
- Rated operation current Ie at DC-13, 24 V (EF007087): 6 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0.8 A
More info
▲General-purpose Limit Switch
D4A-@N
The Limit Switch with Better Seal, Shock
Resistance, and Strength
• A double seal on the head, a complete gasket cover, and other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12,
13).
• Block mounting method to reduce weight to 290 g.
• Block mounting method also reduces downtime for mainte- nance.
• Wide standard operating temperature range:
–40°C to 100°C (standard type).
• Models with fluoro-rubber available for greater resistance to chemicals.
• DPDT, double-break models available for complex operations.
Model Number Structure
■ Model Number Legend
D4A-@@@@N
12 3
1.Receptacle Box
1: 1/2-14 NPT conduit (SPDT, double-break)
2: 1/2-14 NPT conduit (DPDT, double-break)
3: G 1/2 conduit (SPDT, double-break)
4: G 1/2 conduit (DPDT, double-break)
5: M20 x 1.5 conduit (SPDT, double-break)
6: M20 x 1.5 conduit (DPDT, double-break)
2.Switch Box
1: SPDT, double-break, without indicator
3: SPDT, double-break, neon lamp
A:SPDT, double-break, LED (12 VDC) C:SPDT, double-break, LED
(24 VDC, leakage current: 4 mA)
E:SPDT, double-break, LED
(24 VDC, leakage current: 1.3 mA)
G:SPDT, double-break, LED (48 VDC)
5: DPDT, double-break, simultaneous operation, without indi- cator
7: DPDT, double-break, sequential operation, without indicator
(See note 1.)
9: DPDT, double-break, center neutral operation, without indi- cator (See note 2.)
L: DPDT, double-break, simultaneous operation, neon lamp
M:DPDT,double-break,sequentialoperation,neonlamp
(See note 1.)
N:DPDT, double-break, center neutral operation, neon lamp
(See note 2.)
P:DPDT, double-break, simultaneous operation, LED Q:DPDT, double-break, sequential operation, LED
(See note 1.)
R:DPDT, double-break, center neutral operation, LED (See note 2.)
3.Head
01: Roller lever, standard
02: Roller lever, high-sensitivity
03: Roller lever, low torque
04: Roller lever, high-sensitivity, low torque
05: Roller lever, maintained
17: Roller lever, sequential operation
18: Roller lever, center neutral operation
06: Side plunger, standard
07-V: Side plunger, vertical roller
07-H: Side plunger, horizontal roller
08: Side plunger, adjustable
09: Top plunger, standard
10: Top plunger, roller
11: Top plunger, adjustable
12: Flexible rod, spring wire
14: Flexible rod, plastic rod
15: Flexible rod, cat whisker
16: Flexible rod, coil spring
Note: 1.Use the D4A-0017N Special Head.
2.Use the D4A-0018N Special Head.
3.Fluoro-rubber sealed type is also available.
General-purpose Limit Switch D4A-@N F-9
