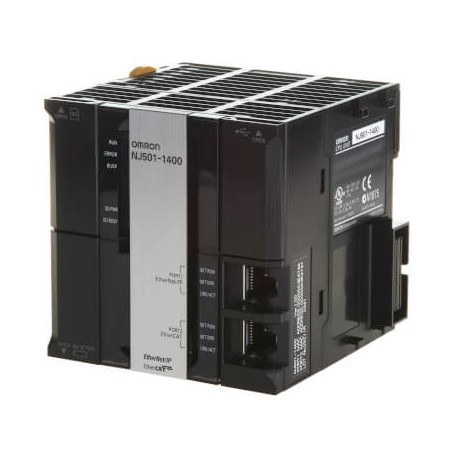

OMRON NJ501-5300 NJ501-5300 NX010104H NJ5015300 OMRON NJ501 Machine Controller + CNC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NJ501-5300 NX010104H NJ5015300 OMRON NJ501 Machine Controller + CNC

NJ501-5300

NX010104H

NJ5015300

OMRON

1 Pcs.

NJ501 Machine Controller + CNC Sysmac NJ5 CNC CPU, 20MB memory, built-in EtherCAT (16 servo axes, in total 192 EtherCAT nodes) and EtherNet/IP

Automation > PLC CPU-module
Machine Controllers NJ5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron machine controller provides high-speed motion and sequence control for demanding industrial automation tasks, coordinating multiple axes and robotic systems. It ensures precise synchronization in advanced manufacturing applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Controller functionality: CNC, Motion control, Sequence control
  • Max. number of synchronous axes: 16
  • Max. number of axes (incl. virtual): 16
  • Max. number of robots: 0
  • Primary task cycle time: 0.5 ms
  • Program memory: 20 MB
  • Variables memory: 6 MB
  • Communication port(s): EtherCAT Master, EtherNet/IP, USB
  • Max. number of remote I/O nodes: 192
  • I/O system: CJ I/O Bus
  • Max. number of expansion units: 40
  • Height: 90 mm
  • Width: 90 mm
  • Depth: 90 mm
  • Weight: 550 g
  • Model (EF000010): Modular

More info

▲

Specifications

Controller functionalityCNC, Motion control, Sequence control
Max. number of synchronous axes16
Max. number of axes (incl. virtual)16
Max. number of robots0
Primary task cycle time0.5 ms
Program memory20 MB
Variables memory6 MB
Communication port(s)EtherCAT Master, EtherNet/IP, USB
Communication option(s)CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
Max. number of remote I/O nodes192
I/O systemCJ I/O Bus
Max. number of expansion units40
Height90 mm
Width90 mm
Depth90 mm
Weight550 g

Accessories

GX-JC033-port EtherCAT Junction module, 24 VDC power supply
GX-JC066-port EtherCAT Junction module, 24 VDC power supply
GX-JC06-H6-port EtherCAT Junction module, 24 VDC power supply, with node switches
HMC-SD4914 GB SD memory card
NJ-PA3001Sysmac NJ power supply unit, 100-240 VAC, 30 W, "RUN" output relay
NJ-PD3001Sysmac NJ power supply unit, 24 VDC, 30 W, "RUN" output relay
W4S1-03B3-port basic Ethernet switch
W4S1-05D5-port enhanced Ethernet switch

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
