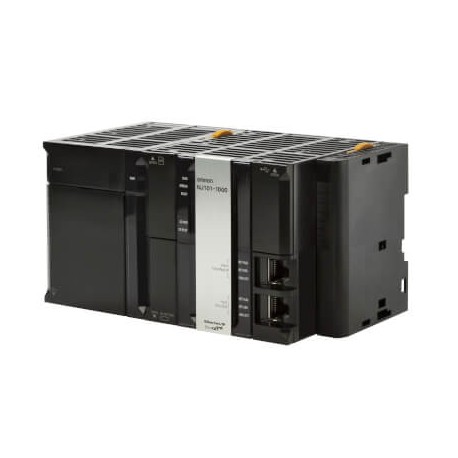

OMRON NJ101-9000 NJ101-9000 NX010044M NJ1019000 OMRON NJ101 Machine Controller 0 Axes View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NJ101-9000 NX010044M NJ1019000 OMRON NJ101 Machine Controller 0 Axes

NJ101-9000

NX010044M

NJ1019000

OMRON

1 Pcs.

NJ101 Machine Controller 0 Axes Sysmac NJ1 CPU, 3MB memory, built-in EtherCAT (0 servo axes, in total 64 EtherCAT nodes) and EtherNet/IP

Automation > PLC CPU-module
Machine Controllers NJ5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron NJ101-9000 machine controller functions as a core processing unit designed to manage complex automation architectures, motion sequences, and machine logic in industrial environments. Programmable controllers of this type coordinate synchronized multi-axis operations, peripheral communication networks, and discrete input-output signals within automated manufacturing cells. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes

More info

▲
Controller functionalitySequence controlMax. number of synchronous axes0Max. number of axes (incl. virtual)0Primary task cycle time1 msProgram memory3 MBVariables memory0.5 MBCommunication port(s)EtherCAT Master, EtherNet/IP, USBCommunication option(s)CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485Max. number of remote I/O nodes64I/O systemCJ I/O BusMax. number of expansion units40Product Weight (unpacked)627 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
