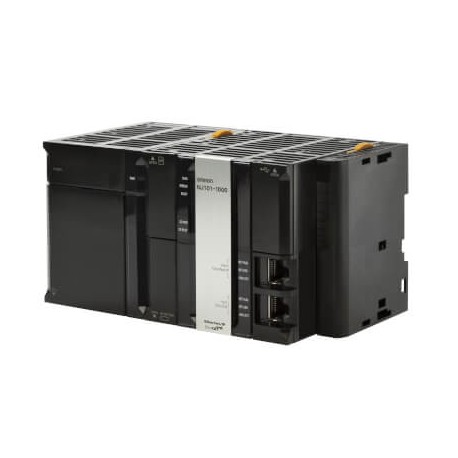

OMRON NJ101-1020 NJ101-1020 NX010045R NJ1011020 OMRON NJ101 Machine Controller + SQL Client 2 Axes View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NJ101-1020 NX010045R NJ1011020 OMRON NJ101 Machine Controller + SQL Client 2 Axes

NJ101-1020

NX010045R

NJ1011020

OMRON

1 Pcs.

NJ101 Machine Controller + SQL Client 2 Axes Sysmac NJ1 CPU with with Database Connectivity, 3MB memory, built-in EtherCAT (2 servo axes, in total 64 EtherCAT nodes) and EtherNet/IP

Automation > PLC CPU-module
Machine Controllers NJ5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron NJ101-1020 machine controller bridges factory automation hardware with IT database systems, allowing real-time data logging and manufacturing execution. These controllers manage machine automation while natively supporting database connectivity for quality tracking and traceability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes
  • Supporting protocol for DNP3 (EF016068): No

More info

▲
Controller functionalityDB connection, Motion control, Sequence controlMax. number of synchronous axes2Max. number of axes (incl. virtual)6Primary task cycle time1 msProgram memory3 MBVariables memory0.5 MBCommunication port(s)EtherCAT Master, EtherNet/IP, USBCommunication option(s)CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485Max. number of remote I/O nodes64I/O systemCJ I/O BusMax. number of expansion units40Product Height (unpacked)97.5 mmProduct Width (unpacked)90 mmProduct Depth (unpacked)90 mmProduct Weight (unpacked)550 g
