View larger
Images are for illustrative purposes only. Please refer to data sheet for details

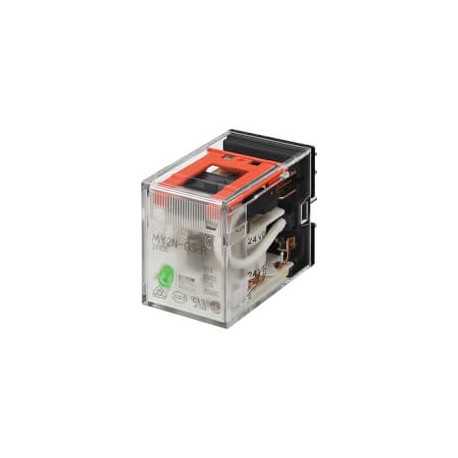

MY2-GS-R AC24 MY2 5700D MY2GSRAC24BYOMZ OMRON Relay, plug-in, 8 contacts, DPDT, 5 A, mechanical indicator, 2..
MY2-GS-R AC24
MY2 5700D
MY2GSRAC24BYOMZ
OMRON
1 Pcs.
Relay, plug-in, 8 contacts, DPDT, 5 A, mechanical indicator, 24 V AC
Relay, plug-in, 8-pin, DPDT, 10 A, mechanical indicator, 24 VAC
Automation > Switching relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Mounting methodWith plug-in socketUsageGeneral purposePoles2Rated carry current10 ACoil voltage24 VOperation voltageACContact materialAgContact descriptionDPDTFeaturesTransparent case, With mechanical indicatorTerminal typePlug-in, Solder
| Feature Name | Feature Value |
|---|---|
| Type of switch contact (EF003358) | Single contact |
| Degree of protection (IP) (EF005474) | Other |
| Drive, polarization (EF003355) | Polarity free |
| Voltage type for actuating (EF008242) | AC |
| Type of electric connection (EF003961) | Plug-in connection |
| Drive, switching attitude (EF003356) | Mono stable |
| With detachable clamps (EF003340) | No |
| Complete with socket (EF003359) | No |
| With LED indication (EF005950) | No |
| With forced-guided contacts (EF003357) | No |
| Number of contacts as change-over contact (EF008257) | 2 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Width (EF000008) | 21.5 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height (EF000040) | 28 mm |
| Depth (EF000049) | 36 mm |
| Nominal current (EF000001) | 10 A |
| Rated control supply voltage AC 60 Hz (EF003979) | 19.2 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 19.2 V |
