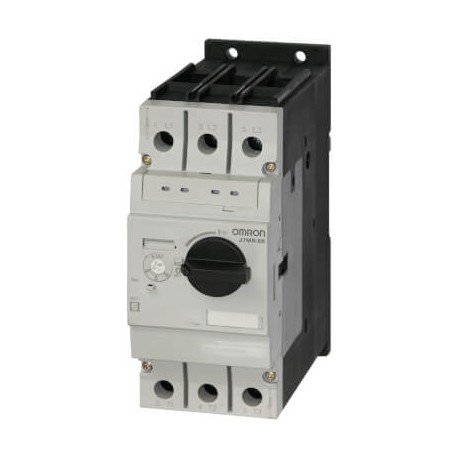

J7MN-6R-50 J7MN9088E J7MN6R50 OMRON 34 50 / 22KW Rotary
J7MN-6R-50
J7MN9088E
J7MN6R50
OMRON
1 Pcs.
34 - 50 / 22KW Rotary
Motor-protective circuit breaker, rotary type, 3-pole, 34-50 A
Automation > Motor protection circuit-breaker
J7MN Motor Protector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Rated power AC2, AC3 at 400 V [kW]22 kWSuitable for motors 3 ~ 400 V [kW]22 kWRated current [A]50 ASetting range thermal overload release current [A]34-50 ASetting range instantaneous short-circuit release current [A]650-650 AShort-circuit breaking capacity at 3 ~ 400 V [kA]50 kATerminal typeScrewProduct Width (unpacked)55 mmProduct Height (unpacked)140 mmProduct Depth (unpacked)144 mmControl typeRotary type
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Type of control element (EF006976) | Rotating button |
| Device construction (EF008240) | Complete device in housing |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Switch off technique (EF007007) | Thermomagnetic |
| Phase failure sensitive (EF007400) | Yes |
| With integrated under voltage release (EF001390) | No |
| With integrated auxiliary switch (EF001387) | No |
| Rated permanent current Iu (EF001389) | 50 A |
| Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) | 50 kA |
| Width (EF000008) | 55 mm |
| Rated operation power at AC-3, 400 V (EF001364) | 22 kW |
| Height (EF000040) | 140 mm |
| Number of poles (EF001391) | 3 |
| Depth (EF000049) | 144 mm |
| Rated operation power at AC-3, 230 V (EF007025) | 22 kW |
| Overload release current setting (EF002336) | 34 A |
| Adjustment range undelayed short-circuit release (EF007131) | 650 A |
| Rated operating voltage (EF001435) | 400 V |
