> OMRON > Low Voltage Switchgear > J7MN Motor Protector > J7MN9086R

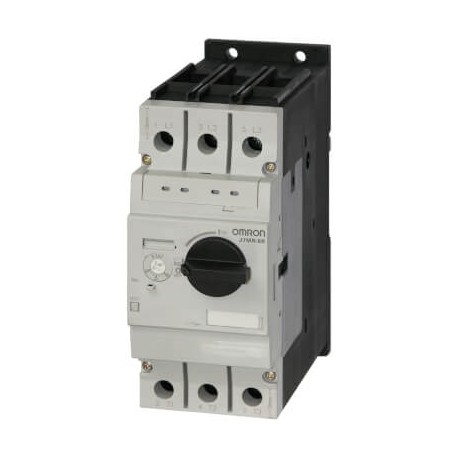

OMRON J7MN-6R-32 J7MN-6R-32 J7MN9086R J7MN6R32 OMRON 22 32 / 15KW Rotary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MN-6R-32 J7MN9086R J7MN6R32 OMRON 22 32 / 15KW Rotary

J7MN-6R-32

J7MN9086R

J7MN6R32

OMRON

1 Pcs.

22 - 32 / 15KW Rotary Motor-protective circuit breaker, rotary type, 3-pole, 22-32 A

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured as an Omron J7MN-6R-32 rotary motor protection circuit breaker, this unit delivers dependable switching and fault current interruption for industrial automation lines. Rotary protective breakers allow manual operation while offering automated thermal and magnetic trip responses.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Type of control element (EF006976): Rotating button
  • Device construction (EF008240): Complete device in housing
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Switch off technique (EF007007): Thermomagnetic
  • Phase failure sensitive (EF007400): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Rated permanent current Iu (EF001389): 32 A
  • Width (EF000008): 55 mm
  • Rated operation power at AC-3, 400 V (EF001364): 12.5 kW
  • Height (EF000040): 140 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 144 mm
  • Rated operation power at AC-3, 230 V (EF007025): 12.5 kW
  • Overload release current setting (EF002336): 22 A

More info

▲
Rated power AC2, AC3 at 400 V [kW]12.5 kWSuitable for motors 3 ~ 400 V [kW]15 kWRated current [A]32 ASetting range thermal overload release current [A]22-32 ASetting range instantaneous short-circuit release current [A]416-416 AShort-circuit breaking capacity at 3 ~ 400 V [kA]50 kATerminal typeScrewProduct Width (unpacked)55 mmProduct Height (unpacked)140 mmProduct Depth (unpacked)144 mmControl typeRotary type
