> OMRON > Low Voltage Switchgear > J7MN Motor Protector > J7MN9072R

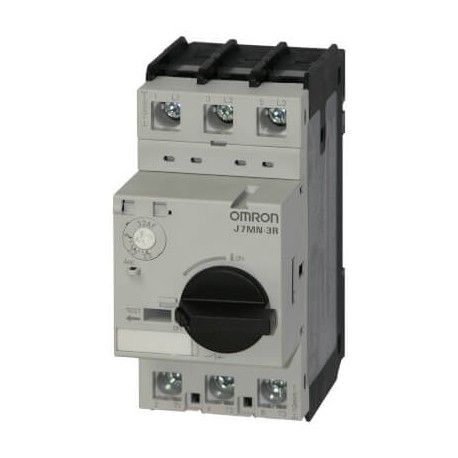

OMRON J7MN-3R-E63 J7MN-3R-E63 J7MN9072R J7MN3RE63 OMRON 0,4 0,63 A / 0.18 KW Rotary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MN-3R-E63 J7MN9072R J7MN3RE63 OMRON 0,4 0,63 A / 0.18 KW Rotary

J7MN-3R-E63

J7MN9072R

J7MN3RE63

OMRON

1 Pcs.

0,4 - 0,63 A / 0.18 KW Rotary Motor-protective circuit breaker, rotary type, 3-pole, 0.4-0.63 A

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Rotary motor protection circuit breaker J7MN-3R-E63 by Omron combines thermomagnetic trip mechanisms with a rotating control knob for dependable 3-pole motor safety. These units are widely installed in industrial control panels to protect small electric motors from overload and short-circuit conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Type of control element (EF006976): Rotating button
  • Device construction (EF008240): Complete device in housing
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Switch off technique (EF007007): Thermomagnetic
  • Phase failure sensitive (EF007400): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Rated permanent current Iu (EF001389): 0.63 A
  • Width (EF000008): 45 mm
  • Rated operation power at AC-3, 400 V (EF001364): 0.18 kW
  • Height (EF000040): 98 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 100 mm
  • Rated operation power at AC-3, 230 V (EF007025): 0.18 kW
  • Overload release current setting (EF002336): 0.4 A

More info

▲
Rated power AC2, AC3 at 400 V [kW]0.18 kWSuitable for motors 3 ~ 400 V [kW]0.18 kWRated current [A]0.63 ASetting range thermal overload release current [A]0.4-0.63 ASetting range instantaneous short-circuit release current [A]8.2-8.2 AShort-circuit breaking capacity at 3 ~ 400 V [kA]100 kATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)98 mmProduct Depth (unpacked)100 mmControl typeRotary type
