View larger

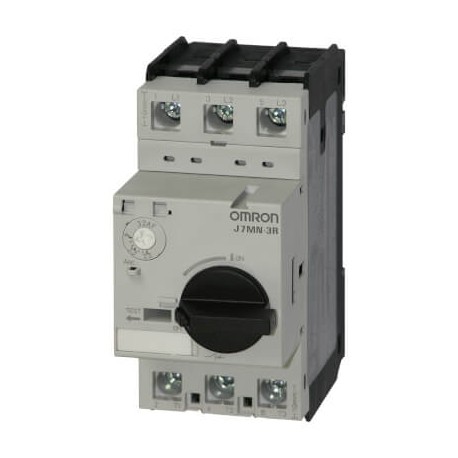

J7MN-3R-E4 J7MN9071M J7MN3RE4 OMRON 0,25 0,4 A / 0,09 KW Rotary
J7MN-3R-E4
J7MN9071M
J7MN3RE4
OMRON
1 Pcs.
Automation > Motor protection circuit-breaker
J7MN Motor Protector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron J7MN-3R-E4 J7MN9071M J7MN3RE4 OMRON 0,25 0,4 A / 0,09 KW Rotary protects low-power electric motors by managing manual start operations and tripping rapidly when thermal overloads or short circuits occur.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for motors 3 ~ 400 V [kW]: 0.09 kW
- Rated current [A]: 0.4 A
- Setting range thermal overload release current [A]: 0.25-0.4 A
- Short-circuit breaking capacity at 3 ~ 400 V [kA]: 100 kA
- Terminal: Screw
- Width: 45 mm
- Height: 97 mm
- Depth: 100 mm
- Control type: Rotary type
- Rated permanent current Iu (EF001389): 0.4 A
- Width (EF000008): 45 mm
- Height (EF000040): 98 mm
- Depth (EF000049): 100 mm
- Overload release current setting (EF002336): 0.25 A
- Adjustment range undelayed short-circuit release (EF007131): 5.2 A
More info
▲Specifications
| Suitable for motors 3 ~ 400 V [kW] | 0.09 kW |
| Rated current [A] | 0.4 A |
| Setting range thermal overload release current [A] | 0.25-0.4 A |
| Setting range instantaneous short-circuit release current [A] | 5.2-5.2 A |
| Short-circuit breaking capacity at 3 ~ 400 V [kA] | 100 kA |
| Terminal | Screw |
| Width | 45 mm |
| Height | 97 mm |
| Depth | 100 mm |
| Control type | Rotary type |
