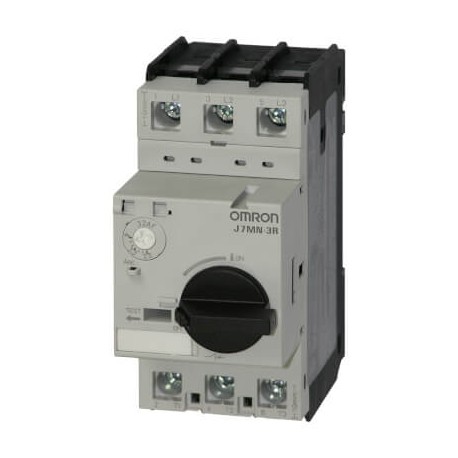

OMRON J7MN-3R-4 J7MN-3R-4 J7MN9076A J7MN3R4 OMRON 2,5 4 A / 1.5 KW Rotating View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MN-3R-4 J7MN9076A J7MN3R4 OMRON 2,5 4 A / 1.5 KW Rotating

J7MN-3R-4

J7MN9076A

J7MN3R4

OMRON

1 Pcs.

2,5 - 4 A / 1.5 KW Rotating Motor-protective circuit breaker, rotary type, 3-pole, 2.5-4 A

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron motor protection circuit breaker J7MN-3R-4 features a rotating button control element and thermomagnetic trip technology for reliable 3-pole motor safety. These protective switches are widely used in industrial automation panels to prevent electrical damage from overloads and short circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Type of control element (EF006976): Rotating button
  • Device construction (EF008240): Complete device in housing
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Switch off technique (EF007007): Thermomagnetic
  • Phase failure sensitive (EF007400): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Rated permanent current Iu (EF001389): 4 A
  • Width (EF000008): 45 mm
  • Rated operation power at AC-3, 400 V (EF001364): 1.5 kW
  • Height (EF000040): 98 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 100 mm
  • Rated operation power at AC-3, 230 V (EF007025): 1.5 kW
  • Overload release current setting (EF002336): 2.5 A

More info

▲
Rated power AC2, AC3 at 400 V [kW]1.5 kWSuitable for motors 3 ~ 400 V [kW]1.5 kWRated current [A]4 ASetting range thermal overload release current [A]2.5-4 ASetting range instantaneous short-circuit release current [A]52-52 AShort-circuit breaking capacity at 3 ~ 400 V [kA]100 kATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)98 mmProduct Depth (unpacked)100 mmControl typeRotary type
