View larger
Images are for illustrative purposes only. Please refer to data sheet for details

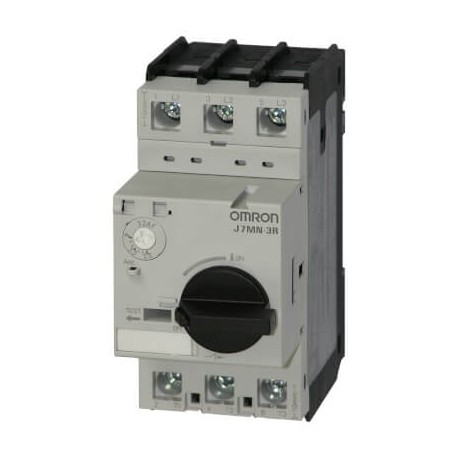

J7MN-3R-2E5 J7MN9075C J7MN3R2E5 OMRON 1,6 2,5 A / 0,75 KW Rotating
J7MN-3R-2E5
J7MN9075C
J7MN3R2E5
OMRON
1 Pcs.
1,6 - 2,5 A / 0,75 KW Rotating
Motor-protective circuit breaker, rotary type, 3-pole, 1.6-2.5 A
Automation > Motor protection circuit-breaker
J7MN Motor Protector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Rated power AC2, AC3 at 400 V [kW]0.75 kWSuitable for motors 3 ~ 400 V [kW]0.75 kWRated current [A]2.5 ASetting range thermal overload release current [A]1.6-2.5 ASetting range instantaneous short-circuit release current [A]32.5-32.5 AShort-circuit breaking capacity at 3 ~ 400 V [kA]100 kATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)98 mmProduct Depth (unpacked)100 mmControl typeRotary type
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Type of control element (EF006976) | Rotating button |
| Device construction (EF008240) | Complete device in housing |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Switch off technique (EF007007) | Thermomagnetic |
| Phase failure sensitive (EF007400) | Yes |
| With integrated under voltage release (EF001390) | No |
| With integrated auxiliary switch (EF001387) | No |
| Rated permanent current Iu (EF001389) | 2.5 A |
| Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) | 100 kA |
| Width (EF000008) | 45 mm |
| Rated operation power at AC-3, 400 V (EF001364) | 0.75 kW |
| Height (EF000040) | 98 mm |
| Number of poles (EF001391) | 3 |
| Depth (EF000049) | 100 mm |
| Rated operation power at AC-3, 230 V (EF007025) | 0.75 kW |
| Overload release current setting (EF002336) | 1.6 A |
| Adjustment range undelayed short-circuit release (EF007131) | 32.5 A |
| Rated operating voltage (EF001435) | 400 V |
