OMRON J7MN-3R-22 J7MN-3R-22 J7MN9082F J7MN3R22 OMRON 14 20 A / 7.5 KW Rotary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

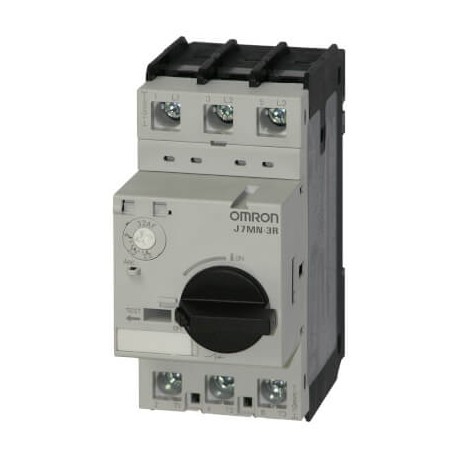

J7MN-3R-22 J7MN9082F J7MN3R22 OMRON 14 20 A / 7.5 KW Rotary

J7MN-3R-22

J7MN9082F

J7MN3R22

OMRON

1 Pcs.

14 - 20 A / 7.5 KW Rotary Motor-protective circuit breaker, rotary type, 3-pole, 14-22 A

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron rotary motor protection circuit breaker safeguards electrical drives against thermal overloads and short circuits within industrial automation systems. Panel builders utilize these devices to ensure reliable switching and comprehensive protection for machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Type of control element (EF006976): Rotating button
  • Device construction (EF008240): Complete device in housing
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Switch off technique (EF007007): Thermomagnetic
  • Phase failure sensitive (EF007400): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Rated permanent current Iu (EF001389): 22 A
  • Width (EF000008): 45 mm
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Height (EF000040): 98 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 100 mm
  • Rated operation power at AC-3, 230 V (EF007025): 7.5 kW
  • Overload release current setting (EF002336): 14 A

More info

▲
Rated power AC2, AC3 at 400 V [kW]7.5 kWSuitable for motors 3 ~ 400 V [kW]7.5 kWRated current [A]22 ASetting range thermal overload release current [A]14-22 ASetting range instantaneous short-circuit release current [A]286-286 AShort-circuit breaking capacity at 3 ~ 400 V [kA]50 kATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)98 mmProduct Depth (unpacked)100 mmControl typeRotary type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
