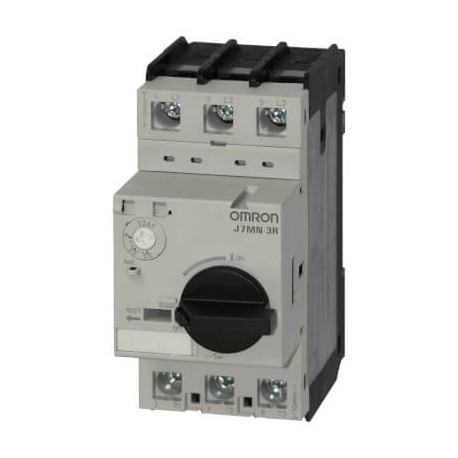

OMRON J7MN-3R-17 J7MN-3R-17 J7MN9081H J7MN3R17 OMRON 11 17 TO / to 7.5 KW Rotary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MN-3R-17 J7MN9081H J7MN3R17 OMRON 11 17 TO / to 7.5 KW Rotary

J7MN-3R-17

J7MN9081H

J7MN3R17

OMRON

1 Pcs.

11 - 17 TO / to 7.5 KW Rotary Motor-protective circuit breaker, rotary type, 3-pole, 11-17 A

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron J7MN-3R-17 is a rotary motor protection circuit breaker engineered to safeguard industrial drives against thermal overloads and phase failures. Compact manual motor starters of this type provide reliable switching, isolation, and adjustable trip characteristics directly inside control panels. Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP20
  • Type of control element: Rotating button
  • Device construction: Complete device in housing
  • Type of electrical connection of main circuit: Screw connection
  • Switch off technique: Thermomagnetic
  • Phase failure sensitive: Yes
  • Rated permanent current Iu: 17 A
  • Rated operation power at AC-3, 400 V: 7.5 kW

More info

▲
Rated power AC2, AC3 at 400 V [kW]7.5 kWSuitable for motors 3 ~ 400 V [kW]7.5 kWRated current [A]17 ASetting range thermal overload release current [A]11-17 ASetting range instantaneous short-circuit release current [A]221-221 AShort-circuit breaking capacity at 3 ~ 400 V [kA]50 kATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)98 mmProduct Depth (unpacked)100 mmControl typeRotary type
