View larger

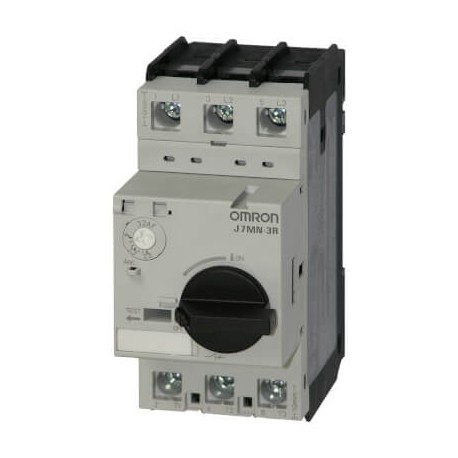

J7MN-3R-13 J7MN9080M J7MN3R13 OMRON 9 13 / 5.5 KW Rotary
J7MN-3R-13
J7MN9080M
J7MN3R13
OMRON
1 Pcs.
Automation > Motor protection circuit-breaker
J7MN Motor Protector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Featuring a convenient rotating button operator, the Omron J7MN-3R-13 rotary motor protector safeguards electrical circuits from thermal overloads and short circuits. Panel builders frequently use such devices in motor starter assemblies to ensure reliable machine uptime. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (IP) (EF005474): IP20
- Type of control element (EF006976): Rotating button
- Device construction (EF008240): Complete device in housing
- Type of electrical connection of main circuit (EF006819): Screw connection
- Switch off technique (EF007007): Thermomagnetic
- Phase failure sensitive (EF007400): Yes
- With integrated under voltage release (EF001390): No
- With integrated auxiliary switch (EF001387): No
- Rated permanent current Iu (EF001389): 13 A
- Width (EF000008): 45 mm
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Height (EF000040): 98 mm
- Number of poles (EF001391): 3
- Depth (EF000049): 100 mm
- Rated operation power at AC-3, 230 V (EF007025): 5.5 kW
- Overload release current setting (EF002336): 9 A
