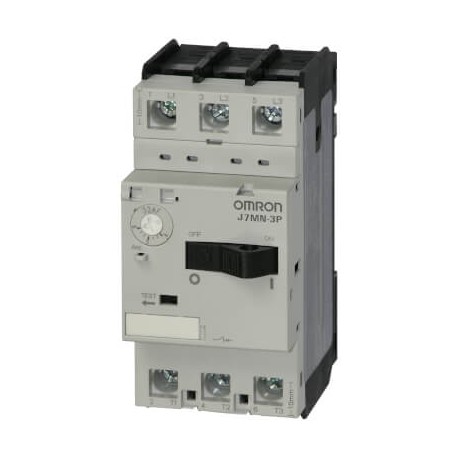

OMRON J7MN-3P-E4 J7MN-3P-E4 J7MN9055R J7MN3PE4 OMRON 0,25 0,4 A / 0,09 KW Rocker View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MN-3P-E4 J7MN9055R J7MN3PE4 OMRON 0,25 0,4 A / 0,09 KW Rocker

J7MN-3P-E4

J7MN9055R

J7MN3PE4

OMRON

1 Pcs.

0,25 - 0,4 A / 0,09 KW Rocker Motor-protective circuit breaker, switch type, 3-pole, 0.25-0.4 A

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron J7MN-3P-E4 is a thermomagnetic motor protection circuit breaker featuring a rocker lever actuator for manual switching and fault interruption. These devices protect small three-phase motors against overloads and phase failures in commercial and industrial automation setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Type of control element (EF006976): Rocker lever
  • Device construction (EF008240): Complete device in housing
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Switch off technique (EF007007): Thermomagnetic
  • Phase failure sensitive (EF007400): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Rated permanent current Iu (EF001389): 0.4 A
  • Width (EF000008): 45 mm
  • Rated operation power at AC-3, 400 V (EF001364): 0.09 kW
  • Height (EF000040): 98 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 75 mm
  • Rated operation power at AC-3, 230 V (EF007025): 0.09 kW
  • Overload release current setting (EF002336): 0.25 A

More info

▲
Rated power AC2, AC3 at 400 V [kW]0.09 kWSuitable for motors 3 ~ 400 V [kW]0.09 kWRated current [A]0.4 ASetting range thermal overload release current [A]0.25-0.4 ASetting range instantaneous short-circuit release current [A]5.2-5.2 AShort-circuit breaking capacity at 3 ~ 400 V [kA]100 kATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)98 mmProduct Depth (unpacked)75 mmControl typeSwitch type
