View larger
Images are for illustrative purposes only. Please refer to data sheet for details

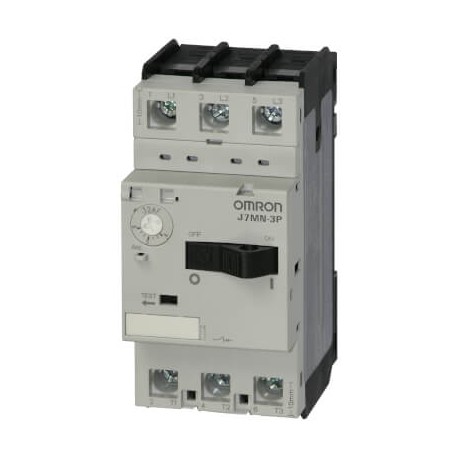

J7MN-3P-E25 J7MN9054M J7MN3PE25 OMRON 0,16 0,25 A / 0,06 KW Rocker
J7MN-3P-E25
J7MN9054M
J7MN3PE25
OMRON
1 Pcs.
0,16 - 0,25 A / 0,06 KW Rocker
0.16 - 0.25 A / 0.06KW Swingarm
Motor-protective circuit breaker, switch type, 3-pole, 0.16-0.25 A
Automation > Motor protection circuit-breaker
J7MN Motor Protector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Rated power AC2, AC3 at 400 V [kW] | 0.06 kW |
| Suitable for motors 3 ~ 400 V [kW] | 0.06 kW |
| Rated current [A] | 0.25 A |
| Setting range thermal overload release current [A] | 0.16-0.25 A |
| Setting range instantaneous short-circuit release current [A] | 3.3-3.3 A |
| Short-circuit breaking capacity at 3 ~ 400 V [kA] | 100 kA |
| Terminal | Screw |
| Width | 45 mm |
| Height | 98 mm |
| Depth | 75 mm |
| Control type | Switch type |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Type of control element (EF006976) | Rocker lever |
| Device construction (EF008240) | Complete device in housing |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Switch off technique (EF007007) | Thermomagnetic |
| Phase failure sensitive (EF007400) | Yes |
| With integrated under voltage release (EF001390) | No |
| With integrated auxiliary switch (EF001387) | No |
| Rated permanent current Iu (EF001389) | 0.25 A |
| Rated short-circuit breaking capacity Icu at 400 V, AC (EF007049) | 100 kA |
| Width (EF000008) | 45 mm |
| Rated operation power at AC-3, 400 V (EF001364) | 0.06 kW |
| Height (EF000040) | 98 mm |
| Number of poles (EF001391) | 3 |
| Depth (EF000049) | 75 mm |
| Rated operation power at AC-3, 230 V (EF007025) | 0.06 kW |
| Overload release current setting (EF002336) | 0.16 A |
| Adjustment range undelayed short-circuit release (EF007131) | 3.3 A |
| Rated operating voltage (EF001435) | 400 V |
