> OMRON > Low Voltage Switchgear > J7MN Motor Protector > J7MN9062A

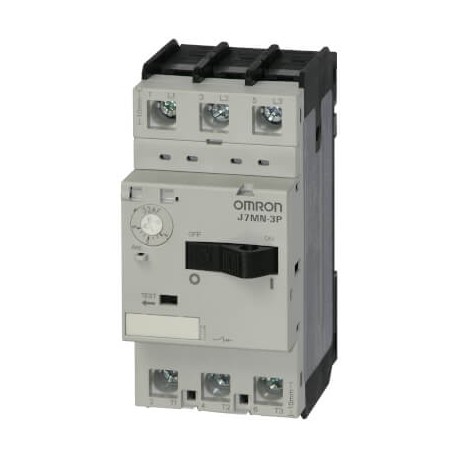

OMRON J7MN-3P-8 J7MN-3P-8 J7MN9062A J7MN3P8 OMRON 5 8 / 3KW Tilting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MN-3P-8 J7MN9062A J7MN3P8 OMRON 5 8 / 3KW Tilting

J7MN-3P-8

J7MN9062A

J7MN3P8

OMRON

1 Pcs.

5 - 8 / 3KW Tilting Motor-protective circuit breaker, switch type, 3-pole, 5-8 A

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron J7MN-3P-8 motor-protective circuit breaker is applied in electrical enclosures to safeguard industrial motors against overload, phase failure, and short-circuit conditions. Its compact design ensures reliable manual switching and thermal-magnetic protection in automated machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Type of control element (EF006976): Rocker lever
  • Device construction (EF008240): Complete device in housing
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Switch off technique (EF007007): Thermomagnetic
  • Phase failure sensitive (EF007400): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Rated permanent current Iu (EF001389): 8 A
  • Width (EF000008): 45 mm
  • Rated operation power at AC-3, 400 V (EF001364): 3 kW
  • Height (EF000040): 98 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 75 mm
  • Rated operation power at AC-3, 230 V (EF007025): 3 kW
  • Overload release current setting (EF002336): 5 A

More info

▲
Rated power AC2, AC3 at 400 V [kW]3 kWSuitable for motors 3 ~ 400 V [kW]3 kWRated current [A]8 ASetting range thermal overload release current [A]5-8 ASetting range instantaneous short-circuit release current [A]104-104 AShort-circuit breaking capacity at 3 ~ 400 V [kA]100 kATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)98 mmProduct Depth (unpacked)75 mmControl typeSwitch type
