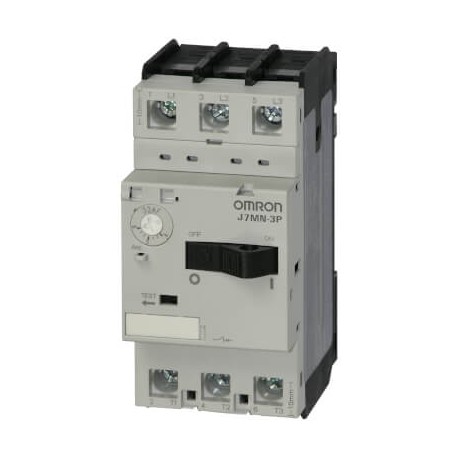

J7MN-3P-22 J7MN9066D J7MN3P22 OMRON 14 22 A / 7.5 KW Tilting

J7MN-3P-22

J7MN9066D

J7MN3P22

OMRON

1 Pcs.

14 - 22 A / 7.5 KW Tilting Motor-protective circuit breaker, switch type, 3-pole, 14-22 A

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron motor protection circuit breaker J7MN-3P-22 is designed to safeguard electrical machinery against phase imbalances and excessive current draws. These devices are standard in manufacturing automation for reliable manual switching and circuit isolation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Type of control element (EF006976): Rocker lever
  • Device construction (EF008240): Complete device in housing
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Switch off technique (EF007007): Thermomagnetic
  • Phase failure sensitive (EF007400): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Rated permanent current Iu (EF001389): 22 A
  • Width (EF000008): 45 mm
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Height (EF000040): 98 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 75 mm
  • Rated operation power at AC-3, 230 V (EF007025): 7.5 kW
  • Overload release current setting (EF002336): 14 A

More info

▲
Rated power AC2, AC3 at 400 V [kW]7.5 kWSuitable for motors 3 ~ 400 V [kW]7.5 kWRated current [A]22 ASetting range thermal overload release current [A]14-22 ASetting range instantaneous short-circuit release current [A]286-286 AShort-circuit breaking capacity at 3 ~ 400 V [kA]15 kATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)98 mmProduct Depth (unpacked)75 mmControl typeSwitch type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
