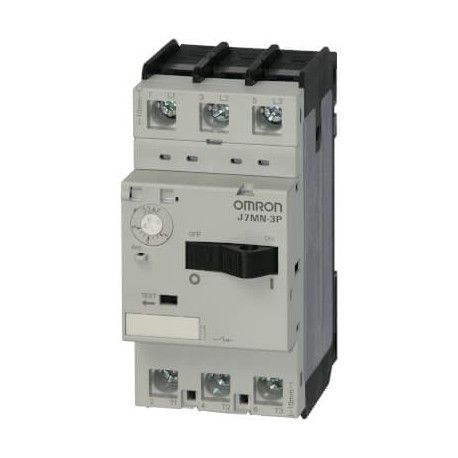

OMRON J7MN-3P-1E6 J7MN-3P-1E6 J7MN9058C J7MN3P1E6 OMRON 1 1.6 A / 0.55 KW Tilting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MN-3P-1E6 J7MN9058C J7MN3P1E6 OMRON 1 1.6 A / 0.55 KW Tilting

J7MN-3P-1E6

J7MN9058C

J7MN3P1E6

OMRON

1 Pcs.

1 - 1.6 A / 0.55 KW Tilting Motor-protective circuit breaker, switch type, 3-pole, 1-1.6 A

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

OMRON 1 1.6 A / 0.55 KW Tilting units operate as motor protection circuit breakers that safeguard industrial electrical equipment from thermal overload and dangerous short-circuit conditions. This Omron J7MN-3P-1E6 model ensures reliable switching and isolation in automated manufacturing setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Type of control element (EF006976): Rocker lever
  • Device construction (EF008240): Complete device in housing
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Switch off technique (EF007007): Thermomagnetic
  • Phase failure sensitive (EF007400): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Rated permanent current Iu (EF001389): 1.6 A
  • Width (EF000008): 45 mm
  • Rated operation power at AC-3, 400 V (EF001364): 0.55 kW
  • Height (EF000040): 98 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 75 mm
  • Rated operation power at AC-3, 230 V (EF007025): 0.55 kW
  • Overload release current setting (EF002336): 1 A

More info

▲
Rated power AC2, AC3 at 400 V [kW]0.55 kWSuitable for motors 3 ~ 400 V [kW]0.55 kWRated current [A]1.6 ASetting range thermal overload release current [A]1-1.6 ASetting range instantaneous short-circuit release current [A]20.8-20.8 AShort-circuit breaking capacity at 3 ~ 400 V [kA]100 kATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)98 mmProduct Depth (unpacked)75 mmControl typeSwitch type

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
