> OMRON > Low Voltage Switchgear > J7MN Motor Protector > J7MN9065F

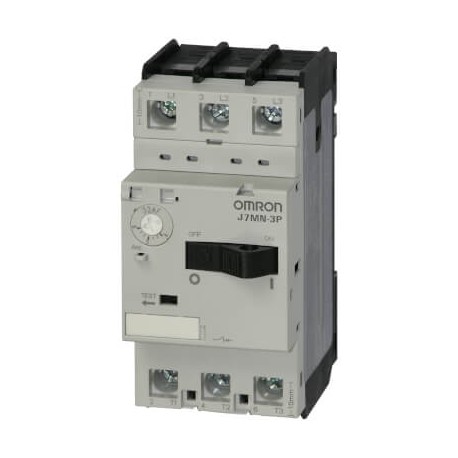

OMRON J7MN-3P-17 J7MN-3P-17 J7MN9065F J7MN3P17 OMRON 11 17 A / 7.5 KW Tilting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7MN-3P-17 J7MN9065F J7MN3P17 OMRON 11 17 A / 7.5 KW Tilting

J7MN-3P-17

J7MN9065F

J7MN3P17

OMRON

1 Pcs.

11 - 17 A / 7.5 KW Tilting Motor-protective circuit breaker, switch type, 3-pole, 11-17 A

Automation > Motor protection circuit-breaker
J7MN Motor Protector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Ensuring electrical safety in automated production lines requires specialized motor protection circuit breakers to prevent operational failures. Housed units of this type deliver dependable thermomagnetic tripping characteristics for industrial machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Type of control element (EF006976): Rocker lever
  • Device construction (EF008240): Complete device in housing
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Switch off technique (EF007007): Thermomagnetic
  • Phase failure sensitive (EF007400): Yes
  • With integrated under voltage release (EF001390): No
  • With integrated auxiliary switch (EF001387): No
  • Rated permanent current Iu (EF001389): 17 A
  • Width (EF000008): 45 mm
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Height (EF000040): 98 mm
  • Number of poles (EF001391): 3
  • Depth (EF000049): 75 mm
  • Rated operation power at AC-3, 230 V (EF007025): 7.5 kW
  • Overload release current setting (EF002336): 11 A

More info

▲
Rated power AC2, AC3 at 400 V [kW]7.5 kWSuitable for motors 3 ~ 400 V [kW]7.5 kWRated current [A]17 ASetting range thermal overload release current [A]11-17 ASetting range instantaneous short-circuit release current [A]221-221 AShort-circuit breaking capacity at 3 ~ 400 V [kA]20 kATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)98 mmProduct Depth (unpacked)75 mmControl typeSwitch type
