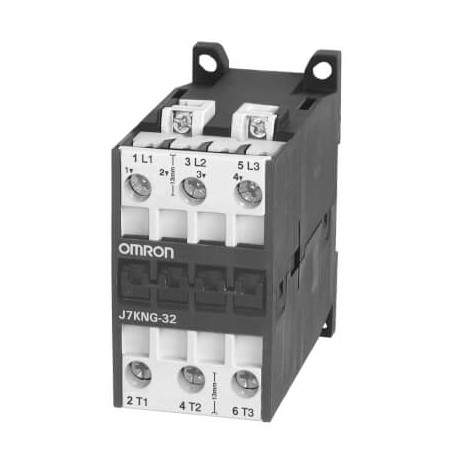

OMRON J7KNG-32 24D J7KNG-32 24D J7KN9478F J7KNG3224D OMRON 15KW / 32A / AC3 DC Low consumption View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNG-32 24D J7KN9478F J7KNG3224D OMRON 15KW / 32A / AC3 DC Low consumption

J7KNG-32 24D

J7KN9478F

J7KNG3224D

OMRON

1 Pcs.

15KW / 32A / AC3 DC Low consumption Contactor, DC-operated (3VA), 3-pole, 32 A/15 kW AC3

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron J7KNG-32 24D is a low-consumption power contactor engineered for efficient electrical load management and motor switching in control panels. Such components provide reliable circuit interruption and connection under standard operational conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 15 kW
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Auxiliary Contacts NO-Auxiliary Contacts NC-Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]15 kWRated current AC3 at 400 V [A]32 ARated current AC1 at 690 V [A]65 ARated current AC1 at 440 V [A]32 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)89 mmProduct Depth (unpacked)108 mmPoles3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
