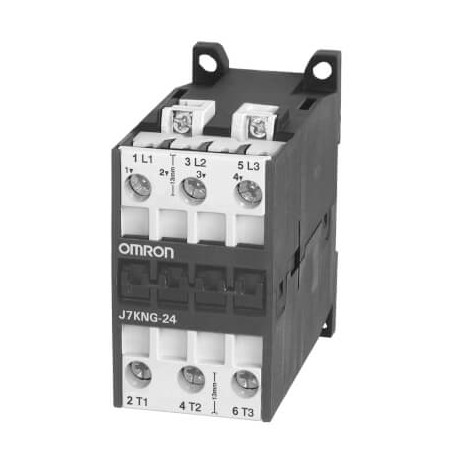

J7KNG-24 24D J7KN9472G J7KNG2424D OMRON 11KW / 24A / AC3 DC Low consumption
J7KNG-24 24D
J7KN9472G
J7KNG2424D
OMRON
1 Pcs.
11KW / 24A / AC3 DC Low consumption
Contactor, DC-operated (3VA), 3-pole, 24 A/11 kW AC3
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Main Contacts NO3Auxiliary Contacts NO-Auxiliary Contacts NC-Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]11 kWRated current AC3 at 400 V [A]24 ARated current AC1 at 690 V [A]50 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)89 mmProduct Depth (unpacked)108 mm
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | No |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 24 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 11 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 24 A |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-4, 400 V (EF008496) | 11 kW |
| Rated control supply voltage DC (EF003980) | 24 V |
