View larger
Images are for illustrative purposes only. Please refer to data sheet for details

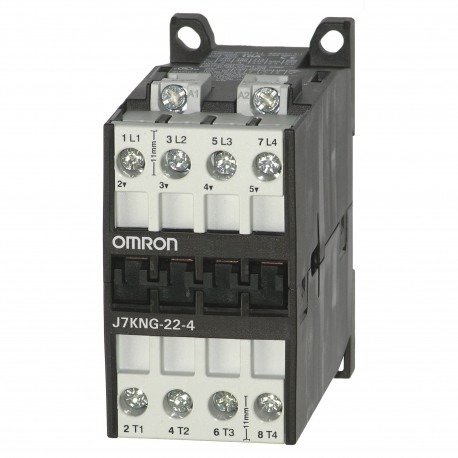

J7KNG-22-4 24D J7KN9466B J7KNG22424D OMRON 11KW / 22A / AC3 4 pole 1NO DC Low consumption
J7KNG-22-4 24D
J7KN9466B
J7KNG22424D
OMRON
1 Pcs.
11KW / 22A / AC3 4 pole 1NO DC Low consumption
DC solenoid motor contactor, 4-pole, 22A, 24 VDC
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Main Contacts NO | 4 |
| Auxiliary Contacts NO | - |
| Auxiliary Contacts NC | - |
| Coil voltage | 24 V |
| Operation voltage | DC |
| Rated power AC2, AC3 at 400 V [kW] | 11 kW |
| Rated current AC3 at 400 V [A] | 22 A |
| Rated current AC1 at 690 V [A] | 32 A |
| Terminal type | Screw |
| Product Width (unpacked) | 45 mm |
| Product Height (unpacked) | 89 mm |
| Product Depth (unpacked) | 94 mm |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 22.1 A |
| Number of normally open contacts as main contact (EF001374) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 22 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 11 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 18 A |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-4, 400 V (EF008496) | 7.5 kW |
| Rated control supply voltage DC (EF003980) | 24 V |
