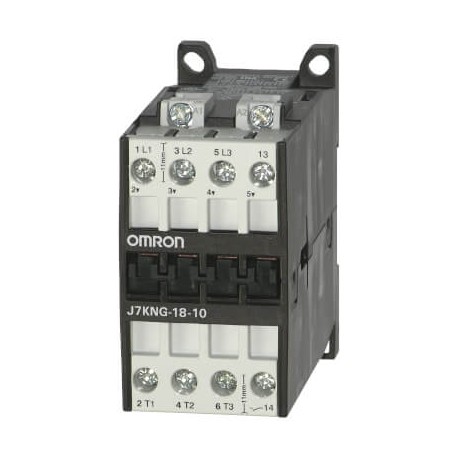

OMRON J7KNG-18-10 24D J7KNG-18-10 24D J7KN9380A J7KNG181024D OMRON 7.5 KW / 18A / AC3 1NO DC Low consumption View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KNG-18-10 24D J7KN9380A J7KNG181024D OMRON 7.5 KW / 18A / AC3 1NO DC Low consumption

J7KNG-18-10 24D

J7KN9380A

J7KNG181024D

OMRON

1 Pcs.

7.5 KW / 18A / AC3 1NO DC Low consumption Contactor, DC-operated (3VA), 3-pole, 18 A/7.5 kW AC3 + 1M auxiliary

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron J7KNG-18-10 contactor is a compact three-pole switching unit engineered for efficient motor control in industrial automation applications. Low-consumption DC contactors like this are frequently deployed to interface directly with electronic controller outputs.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Auxiliary Contacts NO: 1
  • Coil voltage: 24 V
  • Operation voltage: DC
  • Rated power AC2, AC3 at 400 V [kW]: 7.5 kW
  • Rated current AC3 at 400 V [A]: 18 A
  • Rated current AC1 at 690 V [A]: 32 A
  • Rated current AC1 at 440 V [A]: 18 A
  • Terminal type: Screw
  • Product Width (unpacked): 45 mm
  • Product Height (unpacked): 89 mm
  • Product Depth (unpacked): 94 mm
  • Poles: 3
  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Number of normally open contacts as main contact (EF001374): 3

More info

▲

Specifications

Auxiliary Contacts NO1
Auxiliary Contacts NC-
Coil voltage24 V
Operation voltageDC
Rated power AC2, AC3 at 400 V [kW]7.5 kW
Rated current AC3 at 400 V [A]18 A
Rated current AC1 at 690 V [A]32 A
Rated current AC1 at 440 V [A]18 A
Terminal typeScrew
Product Width (unpacked)45 mm
Product Height (unpacked)89 mm
Product Depth (unpacked)94 mm
Poles3
