View larger
Images are for illustrative purposes only. Please refer to data sheet for details

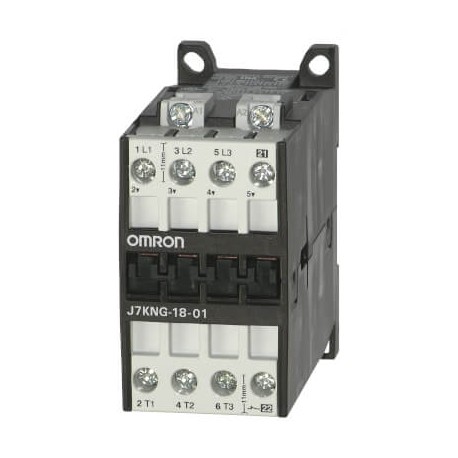

J7KNG-18-01 24D J7KN9376C J7KNG180124D OMRON 7.5 KW / 18A / AC3 1NC DC Low consumption
J7KNG-18-01 24D
J7KN9376C
J7KNG180124D
OMRON
1 Pcs.
7.5 KW / 18A / AC3 1NC DC Low consumption
Contactor, DC-operated (3VA), 3-pole, 18 A/7.5 kW AC3 + 1B auxiliary
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Main Contacts NO3Auxiliary Contacts NO-Auxiliary Contacts NC1Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]7.5 kWRated current AC3 at 400 V [A]18 ARated current AC1 at 690 V [A]32 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)89 mmProduct Depth (unpacked)94 mm
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 22.1 A |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 18 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 7.5 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 18 A |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-4, 400 V (EF008496) | 7.5 kW |
| Rated control supply voltage DC (EF003980) | 24 V |
