J7KNG-14-10 24D J7KN9372M 183558 OMRON 5.5KW/14A/AC3 1NA DC Low Power Consumption
J7KNG-14-10 24D
J7KN9372M
J7KNG141024D
OMRON
1 Pcs.
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

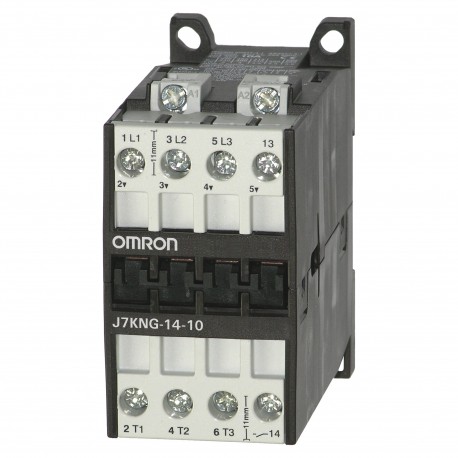

Omron J7KNG-14-10 24D low-power consumption contactor provides precise switching for automated control panels and small motor drive applications. Such compact components allow engineers to interface low-voltage control signals with higher power industrial loads safely and efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Auxiliary Contacts NO: 1
- Coil voltage: 24 V
- Operation voltage: DC
- Rated power AC2, AC3 at 400 V [kW]: 5.5 kW
- Rated current AC3 at 400 V [A]: 14 A
- Rated current AC1 at 690 V [A]: 25 A
- Rated current AC1 at 440 V [A]: 14 A
- Terminal type: Screw
- Product Width (unpacked): 45 mm
- Product Height (unpacked): 89 mm
- Product Depth (unpacked): 94 mm
- Poles: 3
- Voltage type for actuating (EF008242): DC
- Type of electrical connection of main circuit (EF006819): Screw connection
- Modular version (EF001126): No
- Number of normally open contacts as main contact (EF001374): 3
More info
▲Specifications
| Auxiliary Contacts NO | 1 |
| Auxiliary Contacts NC | - |
| Coil voltage | 24 V |
| Operation voltage | DC |
| Rated power AC2, AC3 at 400 V [kW] | 5.5 kW |
| Rated current AC3 at 400 V [A] | 14 A |
| Rated current AC1 at 690 V [A] | 25 A |
| Rated current AC1 at 440 V [A] | 14 A |
| Terminal type | Screw |
| Product Width (unpacked) | 45 mm |
| Product Height (unpacked) | 89 mm |
| Product Depth (unpacked) | 94 mm |
| Poles | 3 |
