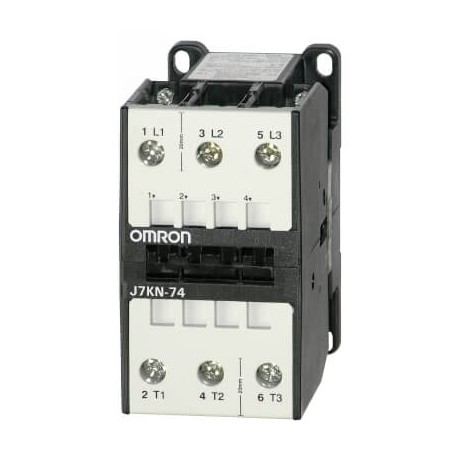

OMRON J7KN-74 24D J7KN-74 24D J7KN9172H J7KN7424D OMRON 37KW / 74A /AC3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KN-74 24D J7KN9172H J7KN7424D OMRON 37KW / 74A /AC3

J7KN-74 24D

J7KN9172H

J7KN7424D

OMRON

1 Pcs.

37KW / 74A /AC3 Contactor, 3-pole, 74 A/37 kW AC-3 (130 A AC1), 24 VDC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron contactor J7KN-74 24D is a high-capacity switching component designed for managing heavy industrial motor loads and power distribution networks. It ensures reliable operation in demanding electrical control panels.

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Coil voltage: 24 V
  • Operation voltage: DC
  • Rated power AC2, AC3 at 400 V [kW]: 37 kW
  • Rated current AC3 at 400 V [A]: 74 A
  • Rated current AC1 at 690 V [A]: 130 A
  • Rated current AC1 at 440 V [A]: 74 A
  • Terminal: Screw
  • Product Width (unpacked): 60 mm
  • Product Height (unpacked): 112 mm
  • Product Depth (unpacked): 113 mm
  • Poles: 3
  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1, 400 V (EF001393): 130 A
  • Number of normally open contacts as main contact (EF001374): 3

More info

▲

Specifications

Auxiliary Contacts NO-
Auxiliary Contacts NC-
Coil voltage24 V
Operation voltageDC
Rated power AC2, AC3 at 400 V [kW]37 kW
Rated current AC3 at 400 V [A]74 A
Rated current AC1 at 690 V [A]130 A
Rated current AC1 at 440 V [A]74 A
TerminalScrew
Product Width (unpacked)60 mm
Product Height (unpacked)112 mm
Product Depth (unpacked)113 mm
Poles3
