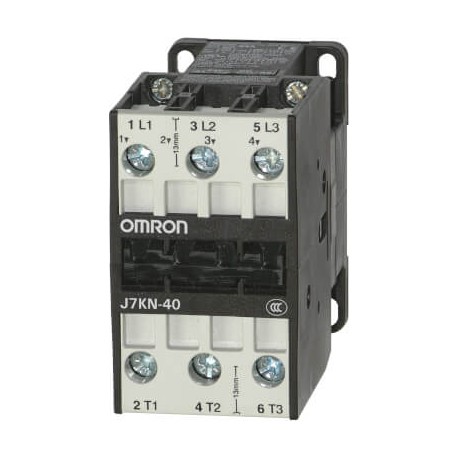

OMRON J7KN-40 24D J7KN-40 24D J7KN9136A J7KN4024D OMRON OF 18.5 KW / 40A /AC3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KN-40 24D J7KN9136A J7KN4024D OMRON OF 18.5 KW / 40A /AC3

J7KN-40 24D

J7KN9136A

J7KN4024D

OMRON

1 Pcs.

OF 18.5 KW / 40A /AC3 Contactor, 3-pole, 40A/18.5kW AC-3 (80A AC1), 24 VDC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron J7KN-40 24D is a robust power contactor designed for controlling electric motors and industrial heating elements. Panel builders use such units to ensure reliable, repetitive switching in automated systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1, 400 V (EF001393): 80 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 40 A
  • Rated operation power at AC-3, 400 V (EF001364): 18.5 kW
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Auxiliary Contacts NO-Auxiliary Contacts NC-Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]18.5 kWRated current AC3 at 400 V [A]40 ARated current AC1 at 690 V [A]80 ARated current AC1 at 440 V [A]40 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)78 mmProduct Depth (unpacked)104.5 mmPoles3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
