View larger
Images are for illustrative purposes only. Please refer to data sheet for details

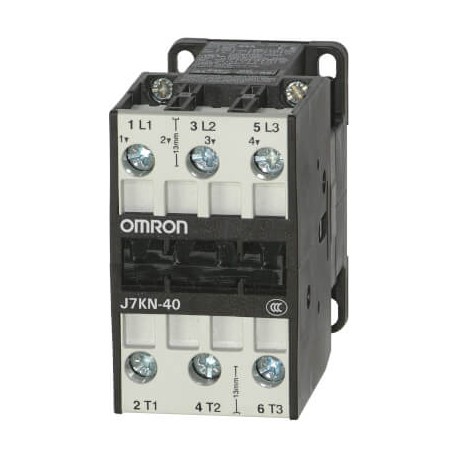

J7KN-40 24 J7KN9128M J7KN4024 OMRON OF 18.5 KW / 40A / AC3
J7KN-40 24
J7KN9128M
J7KN4024
OMRON
1 Pcs.
OF 18.5 KW / 40A / AC3
Contactor, 3-pole, 40 A/18.5 kW AC-3 (80 A AC1), 24 VAC
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Main Contacts NO3Auxiliary Contacts NO-Auxiliary Contacts NC-Coil voltage24 VOperation voltageACRated power AC2, AC3 at 400 V [kW]18.5 kWRated current AC3 at 400 V [A]40 ARated current AC1 at 690 V [A]80 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)74 mmProduct Depth (unpacked)87.5 mm
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 80 A |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 40 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 18.5 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 40 A |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-4, 400 V (EF008496) | 18.5 kW |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 22 V |
