View larger
Images are for illustrative purposes only. Please refer to data sheet for details

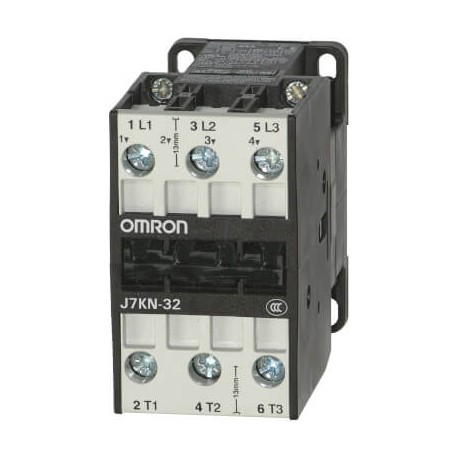

J7KN-32 24D J7KN9124H J7KN3224D OMRON 15KW / 32A / AC3
J7KN-32 24D
J7KN9124H
J7KN3224D
OMRON
1 Pcs.
15KW / 32A / AC3
Contactor, 3-pole, 32A/15kW AC-3 (65A AC1), 24 VDC
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Auxiliary Contacts NO-Auxiliary Contacts NC-Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]15 kWRated current AC3 at 400 V [A]32 ARated current AC1 at 690 V [A]65 ARated current AC1 at 440 V [A]32 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)78 mmProduct Depth (unpacked)104.5 mmPoles3
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 65 A |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 32 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 15 kW |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated control supply voltage DC (EF003980) | 19.2 V |
