View larger
Images are for illustrative purposes only. Please refer to data sheet for details

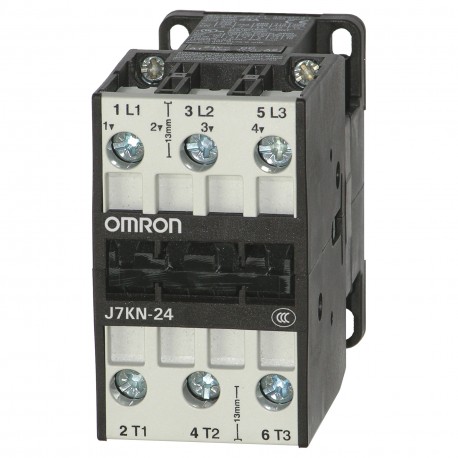

J7KN-24 24D J7KN9112D J7KN2424D OMRON 11KW / 24A / AC3
J7KN-24 24D
J7KN9112D
J7KN2424D
OMRON
1 Pcs.
11KW / 24A / AC3
Contactor, 3-pole, 24A/11kW AC-3 (50A AC1), 24 VDC
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Auxiliary Contacts NO | - |
| Auxiliary Contacts NC | - |
| Coil voltage | 24 V |
| Operation voltage | DC |
| Rated power AC2, AC3 at 400 V [kW] | 11 kW |
| Rated current AC3 at 400 V [A] | 24 A |
| Rated current AC1 at 690 V [A] | 50 A |
| Rated current AC1 at 440 V [A] | 24 A |
| Terminal type | Screw |
| Product Width (unpacked) | 45 mm |
| Product Height (unpacked) | 78 mm |
| Product Depth (unpacked) | 104.5 mm |
| Poles | 3 |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 24 A |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 24 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 11 kW |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated control supply voltage DC (EF003980) | 19.2 V |
