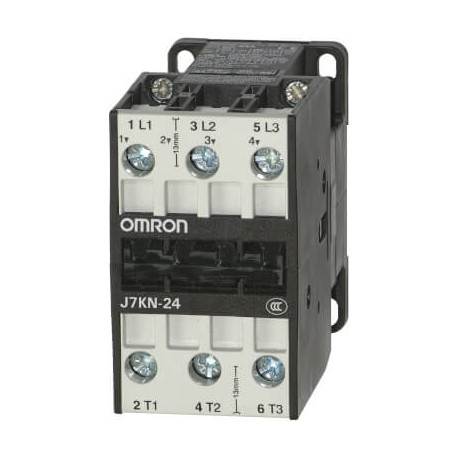

OMRON J7KN-24 230 J7KN-24 230 J7KN9109D J7KN24230 OMRON 11KW / 24A / AC3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KN-24 230 J7KN9109D J7KN24230 OMRON 11KW / 24A / AC3

J7KN-24 230

J7KN9109D

J7KN24230

OMRON

1 Pcs.

11KW / 24A / AC3 Contactor, 3-pole, 24 A/11 kW AC-3 (50 A AC1), 230 VAC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The J7KN-24 230 J7KN9109D J7KN24230 OMRON 11KW / 24A / AC3 functions as an industrial power contactor built to govern electrical motor operations and automated machinery setups. These components act as reliable intermediaries between low-voltage controllers and high-power industrial loads. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1, 400 V (EF001393): 24 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 50 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 24 A
  • Rated operation power at AC-4, 400 V (EF008496): 11 kW
  • Rated control supply voltage AC 60 Hz (EF003979): 230 V
  • Rated control supply voltage AC 50 Hz (EF003978): 220 V

More info

▲
Main Contacts NO3Auxiliary Contacts NO-Auxiliary Contacts NC-Coil voltage230 VOperation voltageACRated power AC2, AC3 at 400 V [kW]11 kWRated current AC3 at 400 V [A]50 ARated current AC1 at 690 V [A]50 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)74 mmProduct Depth (unpacked)87.5 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
