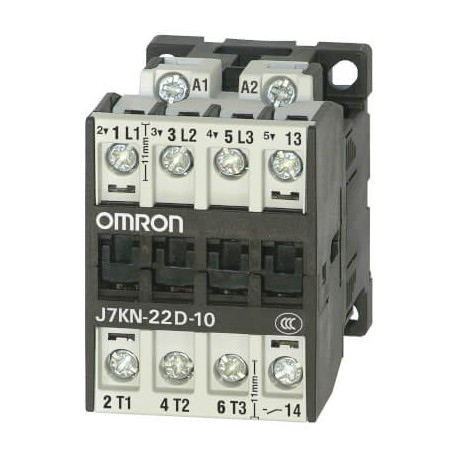

J7KN-22D-10 230 J7KN9764E J7KN22D10230 OMRON 11KW / 22A / AC3 1NO
J7KN-22D-10 230
J7KN9764E
J7KN22D10230
OMRON
1 Pcs.
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
J7KN-22D-10 230 J7KN9764E J7KN22D10230 OMRON 11KW / 22A / AC3 1NO serves as an industrial contactor designed for frequent switching of electric motors, heating equipment, and lighting loads in control enclosures. It safely manages high current draws and integrates easily into standard automation schemes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC
- Type of electrical connection of main circuit (EF006819): Screw connection
- Modular version (EF001126): No
- Rated operation current Ie at AC-1, 400 V (EF001393): 32 A
- Number of normally open contacts as main contact (EF001374): 3
- Rated operation current Ie at AC-3, 400 V (EF001392): 22 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated operation current Ie at AC-4, 400 V (EF008495): 18 A
- Rated operation power at AC-4, 400 V (EF008496): 7.5 kW
- Rated control supply voltage AC 60 Hz (EF003979): 230 V
- Rated control supply voltage AC 50 Hz (EF003978): 220 V
