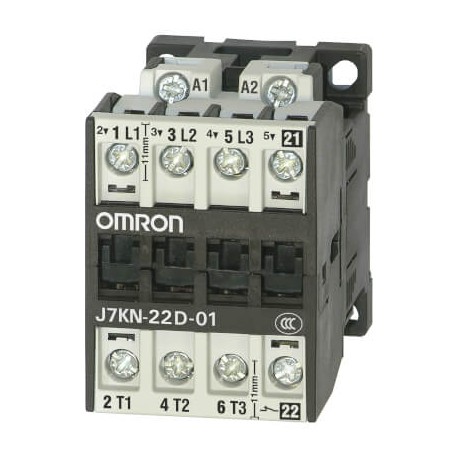

OMRON J7KN-22D-01 24D J7KN-22D-01 24D J7KN9754H J7KN22D0124D OMRON 11KW / 22A / AC3 1NC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KN-22D-01 24D J7KN9754H J7KN22D0124D OMRON 11KW / 22A / AC3 1NC

J7KN-22D-01 24D

J7KN9754H

J7KN22D0124D

OMRON

1 Pcs.

11KW / 22A / AC3 1NC Contactor, 3-pole, 11 kW; 22 A AC3 (380-415 VAC) + 1 NC aux., 24 VDC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron J7KN-22D-01 24D functions as an industrial contactor utilized for safely establishing and interrupting electrical power supplies to motors and auxiliary circuits. These components form the backbone of sequential motor control in automated production environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1, 400 V (EF001393): 32 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 22 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Auxiliary Contacts NO-Auxiliary Contacts NC1Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]11 kWRated current AC3 at 400 V [A]22 ARated current AC1 at 690 V [A]32 ARated current AC1 at 440 V [A]22 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)67 mmProduct Depth (unpacked)82.5 mmPoles3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
