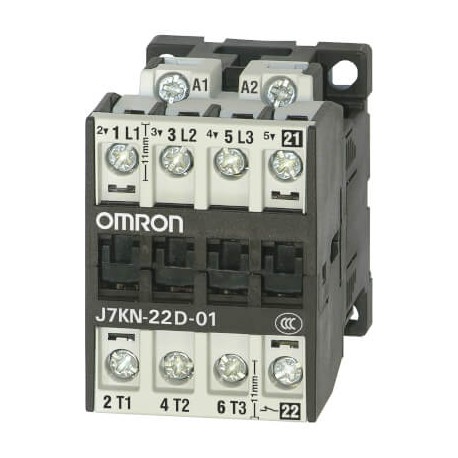

J7KN-22D-01 24 J7KN9753M J7KN22D0124 OMRON 11KW / 22A / AC3 1NC
J7KN-22D-01 24
J7KN9753M
J7KN22D0124
OMRON
1 Pcs.
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Industrial control panels frequently utilize electromechanical contactors such as the Omron J7KN-22D-01 24 to manage power delivery to electric motors and auxiliary equipment. These devices ensure safe, repeatable switching operations for automated machinery. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC
- Type of electrical connection of main circuit (EF006819): Screw connection
- Modular version (EF001126): No
- Rated operation current Ie at AC-1, 400 V (EF001393): 32 A
- Number of normally open contacts as main contact (EF001374): 3
- Rated operation current Ie at AC-3, 400 V (EF001392): 22 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated operation current Ie at AC-4, 400 V (EF008495): 18 A
- Rated operation power at AC-4, 400 V (EF008496): 7.5 kW
- Rated control supply voltage AC 60 Hz (EF003979): 24 V
- Rated control supply voltage AC 50 Hz (EF003978): 22 V
