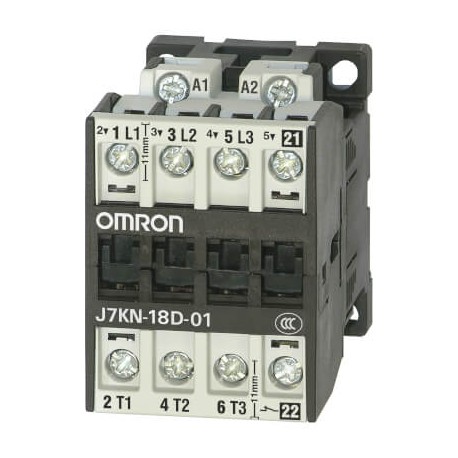

OMRON J7KN-18D-01 24D J7KN-18D-01 24D J7KN9722M J7KN18D0124D OMRON 7.5 KW / 18A/AC3 1NF View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KN-18D-01 24D J7KN9722M J7KN18D0124D OMRON 7.5 KW / 18A/AC3 1NF

J7KN-18D-01 24D

J7KN9722M

J7KN18D0124D

OMRON

1 Pcs.

7.5 KW / 18A/AC3 1NF Contactor, 3-pole, 7.5 kW; 18 A AC3 (380-415 VAC) + 1 NC aux., 24 VDC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron J7KN-18D-01 24D contactor is an electromechanical switching unit widely deployed in industrial control panels for motor starting and general load management. Exact pricing, inventory status, and lead times are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1, 400 V (EF001393): 32 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 18 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Auxiliary Contacts NO-Auxiliary Contacts NC1Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]7.5 kWRated current AC3 at 400 V [A]18 ARated current AC1 at 690 V [A]32 ARated current AC1 at 440 V [A]18 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)67 mmProduct Depth (unpacked)82.5 mmPoles3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
