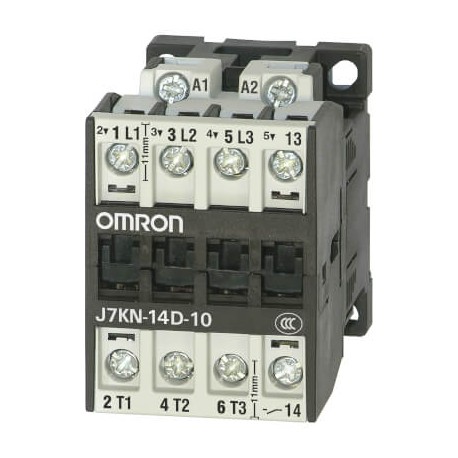

J7KN-14D-10 230 J7KN9700R J7KN14D10230 OMRON 5.5 KW / 14A / AC3 1NO
J7KN-14D-10 230
J7KN9700R
J7KN14D10230
OMRON
1 Pcs.
5.5 KW / 14A / AC3 1NO
Contactor, 3-pole, 14 A/5.5 kW AC3 (25 A AC1) + 1M auxiliary, 230 VAC
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
J7KN-14D-10 230 manufactured by Omron is a standard three-pole contactor built for controlling industrial electric motors and managing power distribution within control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC
- Type of electrical connection of main circuit (EF006819): Screw connection
- Modular version (EF001126): No
- Rated operation current Ie at AC-1, 400 V (EF001393): 25 A
- Number of normally open contacts as main contact (EF001374): 3
- Rated operation current Ie at AC-3, 400 V (EF001392): 14 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated operation current Ie at AC-4, 400 V (EF008495): 14 A
- Rated operation power at AC-4, 400 V (EF008496): 5.5 kW
- Rated control supply voltage AC 60 Hz (EF003979): 230 V
- Rated control supply voltage AC 50 Hz (EF003978): 220 V
More info
▲
Main Contacts NO3Auxiliary Contacts NO1Auxiliary Contacts NC-Coil voltage230 VOperation voltageACRated power AC2, AC3 at 400 V [kW]5.5 kWRated current AC3 at 400 V [A]14 ARated current AC1 at 690 V [A]25 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)64.5 mmProduct Depth (unpacked)65.5 mm
