View larger
Images are for illustrative purposes only. Please refer to data sheet for details

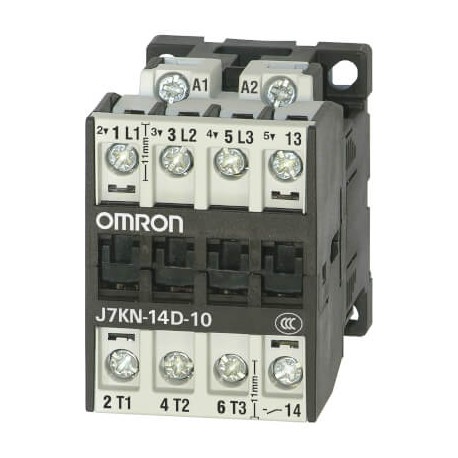

J7KN-14D-10 110 J7KN9696G J7KN14D10110 OMRON 5.5 KW / 14A / AC3 1NO
J7KN-14D-10 110
J7KN9696G
J7KN14D10110
OMRON
1 Pcs.
5.5 KW / 14A / AC3 1NO
Contactor, 3-pole, 5.5 kW; 14 A AC3 (380-415 VAC) + 1 NO aux., 110 VAC
Automation > Power contactor, AC switching
J7KN Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Main Contacts NO3Auxiliary Contacts NO1Auxiliary Contacts NC-Coil voltage110 VOperation voltageACRated power AC2, AC3 at 400 V [kW]5.5 kWRated current AC3 at 400 V [A]14 ARated current AC1 at 690 V [A]25 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)64.5 mmProduct Depth (unpacked)65.5 mm
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 17.3 A |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 14 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 kW |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 14 A |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-4, 400 V (EF008496) | 5.5 kW |
| Rated control supply voltage AC 60 Hz (EF003979) | 110 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 100 V |
