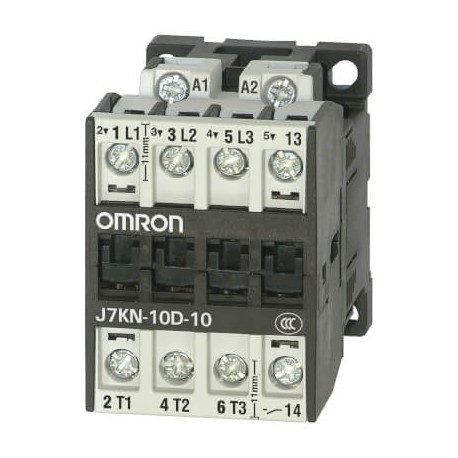

OMRON J7KN-10D-10 24D J7KN-10D-10 24D J7KN9670C J7KN10D1024D OMRON 4KW / 10A / AC3 1NO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7KN-10D-10 24D J7KN9670C J7KN10D1024D OMRON 4KW / 10A / AC3 1NO

J7KN-10D-10 24D

J7KN9670C

J7KN10D1024D

OMRON

1 Pcs.

4KW / 10A / AC3 1NO Contactor, 3-pole, 4 kW; 10 A AC3 (380-415 VAC) + 1 NO aux., 24 VDC

Automation > Power contactor, AC switching
J7KN Contactors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron power contactor (part number J7KN-10D-10 24D) provides reliable electromechanical switching for low-to-medium power motor control circuits within manufacturing environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1, 400 V (EF001393): 25 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation current Ie at AC-3, 400 V (EF001392): 10 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Rated control supply voltage DC (EF003980): 19.2 V

More info

▲
Auxiliary Contacts NO1Auxiliary Contacts NC-Coil voltage24 VOperation voltageDCRated power AC2, AC3 at 400 V [kW]4 kWRated current AC3 at 400 V [A]10 ARated current AC1 at 690 V [A]25 ARated current AC1 at 440 V [A]10 ATerminal typeScrewProduct Width (unpacked)45 mmProduct Height (unpacked)67 mmProduct Depth (unpacked)82.5 mmPoles3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
